FRAME PARTS

for 100-125cc

PENTON / KTM motorcycles

Brake Rod / Pipe Mount / Footpegs / Side Stand / Tool Bag & Rack

Steering Races / Fork Bumpers / Shocks / Number Plates



  Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

  or e-mail us a list of your quantities and part numbers pentonpartsusa@sbcglobal.net





(NOTE: parts are available only while supplies last - prices subject to change without notice)

BRAKE ROD PARTS for all straight hub 1972-73  Penton motorcycles

A



B















           C                   D                                   E                  F           G        E                      H            I



A- # 6-1-000            brake rod for 1968-71 bikes (20" long)  -  Sold out

B - #51-03-070-000  brake rod for 1972-75 bikes (21.5" long) - Sold out

C - # 6-9-000            adjustment wing nut for brake rods -  $5 each
D -
#32-03-073-000  pressure spring for brake rods (6.5mm I.D. x 108mm L) -  $3 each
E -
#51-03-066-100  R/S outer nylon bushing  -    $8 each
F -
#51-03-067-000  nylon bushing f/spring  -       Sold out
G -
#51-03-062-000   chrome return spring  -       $4 each
H - #51-03-061-100   L/S outer nylon bushing  -   $8 each

 I - #51-03-063-044   actuating arm  -                   $12 each                           made in USA

Rubber pipe mount assembly



#51-05-062-000 -       $10 each
       complete with washers, self lock nut, and bolt




A



B





                   C        D

Reproduction Stainless Steel

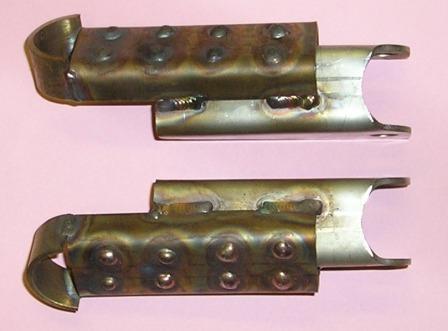

FOOT PEGS

for all CMF frames 1972-1975

New style with serrated tops to grip boots



A - #51-03-040-200 -         Sold out
            Foot peg, left side
B - #51-03-140-200 -          Sold out
             Foot peg, right side
C - #0985-080-003 -           $ .20 each
             nylock nut for bolt
D - #0931-080-403 -           $ .65 each
              mounting bolt                   made in USA

Reproduction

Swing Arm Bushings

for all 100 & 125 CMF frames 1972-1975



 - #51-03-031-000 -         $22 each

Reproduction
 Swing Arm Bolt

Fits all 1972-1980 bikes. Redesigned cap that is extra long and slotted to fit 12mm open end wrench for installing and removing.

 - #51-03-033-000 -         $70 each

  made in USA

New reproduction
TOOL BAG RACK
for 1972-76 PENTON motorcycles


#51-11-059-000 -        Sold out
        Tool bag rack for CMF frames,
         painted silver grey

made in USA

New reproduction
LEATHER TOOL BAG
for PENTON motorcycles - fits Tool Bag Rack



#51-11-060-000 -            $82 each
   approximate size 8-1/4" wide x 6" deep x 5" high

            A              B               C

New reproduction
Steering Head Race kit

#51-01-086-044  -  only $46 each
           includes: 2 inner races, 2 outer races,

                     34 balls, & 2 viton O-rings
also available separately:
A- #51-01-083-000  -           $12 each

           inner race (for steering head)

     43mm O.D. x 26.5mm I.D. x 5.25mm thick
B- #51-01-085-000         -    $12 each

           outer race (for fork plate & bushing)

     43mm O.D. x 26.5mm I.D. x 5.25mm thick
C- #2-52-100  -                     $2 each

            Viton O-ring

New reproduction Fork Bumpers
for all Penton motorcycles.



# 51-03-090-000 -            $8 each

                         made in USA

Reproduction Rubber Buttons



Fit into frame holes to cushion the gas tanks

 - #51-07-069-100-        $4.00 each



A



B



C

D

RUBBER WASHERS

used under steel washers throughout bike to protect

plastic and painted parts



#51-05-082-100  -           $ .20 each or

                                $9.00 per pack/50



B  #0021-060-000-P -           $ .20 each

         flat washers         $3.00 per pk/50



C  #0985-060-003-P -           $ .20 each

      6mm  nylock nuts     $4.00 pk/50



D  #0933-060-203-P  -         $ .25 each

      6 x 20mm bolts        $4.00 pk/25



REAR SHOCKS

13 E to E shock for show bikes or easy riding.

      Not for competition use.



#51-04-010-200 -            Only $90 pair
         Includes 4 bolts, nuts, and bushings.


 Head Light Plastic Number Plates

size - aprox. 9" (230mm) x 11" (280mm)

   all have raised rounded edge on front side

#55-01-090-500   Yellow -      $8 each


#55-01-090-600    White -       $8 each



Plastic Oval Number Plates

size - aprox. 9" (230mm) x 11" (280mm)



   #55-01-090-100   Yellow -      $5 each   or

                                3 for $13

   #55-01-090-200    White -       $5 each   or

                               3 for $13

   #55-01-090-300    Green -       $5 each   or

                               3 for $13

   #55-01-090-400    Red -       $5 each   or

                               3 for $13

   #55-01-090-500    Black -     $5 each   or

                               3 for $13

Plastic Rectangular Number Plates

 small size - aprox. 10"  x 7-1/4"



   #55-01-090-021   Yellow -      $5 each   or

                                3 for $13

   #55-01-090-023    Green -       $5 each   or

                               3 for $13

   #55-01-090-024    Red -       $5 each   or

                               3 for $13

   #55-01-090-025    Black -     $5 each   or

                               3 for $13

Plastic Rectangular Number Plates

 large size - aprox. 12"  x 10"



   #55-01-090-031   Yellow -      $7 each   or

                                3 for $18

   #55-01-090-032    white -       $7 each   or

                               3 for $18

   #55-01-090-033    Green -       $7 each   or

                               3 for $18

         made in USA

   Reproduction
 1972 Penton SIDE STAND

Fits all 1972 CMF frames for 100/125/175 bikes with a mounting

tube attached under the swing arm.
Quality constructed to the same radius as the original.
Price includes 2 nylon bushings, steel washer, spring (not shown)

and cotter pin. (unpainted)

#51-03-023-000 -         Sold out

           made in USA

   Reproduction

   Side Stand

 for 1973-74 CMF frames,

 includes spring (not shown)



#51-03-023-300 -       Sold out
       unpainted, 15" long

#31-03-021-000 - extra spring   $11 each

        stainless steel spring for side stand (not shown)

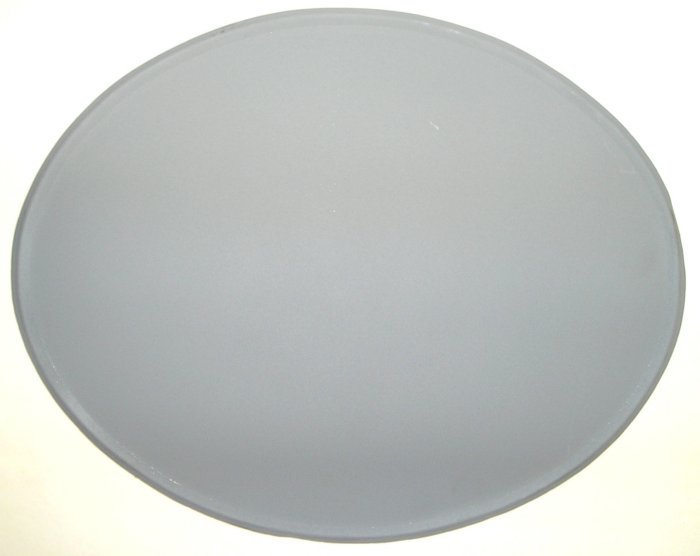

STEEL NUMBER PLATES
with rolled beveled edging
unpainted (oiled steel)

size - aprox. 8-5/8" (220mm) x 10-7/8" (275mm)





#51-01-090-000 -                  Out of Stock
        Oval steel number plate      made in USA
