MAGURA HARDWARE



(NOTE: parts are available only while supplies last - prices subject to change without notice)

Have a question about which part is right for your bike?

Are you ready to place an order?



Call: Alan Buehner - (216) 651-6559   Mon-Fri  8:30am to 4pm E.S.T.

e-mail me a list of your quantities and part numbers - pentonpartsusa@sbcglobal.net

or Fax us: 216-651-1620

A



B

C



D


E

F

A- #51-02-012-000 -    discontinued by Magura
             trap door f/double cable throttle

           size 16mm wide x 34mm long
B- #54-02-012-000 -      $20 each
             trap door f/single cable

           size 12.25mm wide x 48mm long
C-  #51-02-021-000 -     $8 each
              throttle tension screw & spring


D- #51-02-024-000 -      $8 each
              two piece cable adjuster


E- #51-02-028-000 -       $4 each
                Pivot Pin & Nut


F- #51-02-020-000 -       $ .30 each
               screw for throttle clamp





    Pivot pin with 15mm long shank

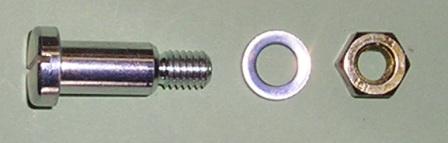

 new style Pivot Pin, Washer & Nut

#51-02-028-044 -       $4.00 each
 15mm pivot pin, washer & nut for smooth style and Power levers

NOTE: Pin has 15mm long shank - The threaded hole on old style perch must be drilled to use this pin.

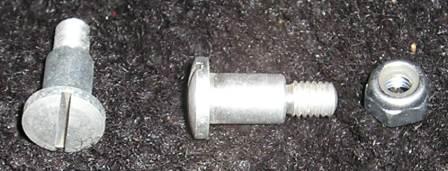

 NOS ISDT Pivot Pin & Nut

#3-6-000 -       $4.00 each
           Large head and long shank for ISDT levers only



A

B

NOS  Pivot Pins



A  #MAG-008 -       $4.00 each

   8mm shank/ 26.5mm long/ 6mm thread/ slot head



B  #MAG-072 -        sold out

   6mm shank/ 21mm long/ 5mm thread

A

B



C



D

NOS  Cable Holders and Adjusters



A  #54-02-004-000 -       $8.00 each

   alloy screw in cable holder for plastic Magura throttles



B  #54-02-004-100 -       $2.00 each

   plastic screw in cable holder for plastic Magura throttles



C  #MAG-189 -       $1.00 each

   plastic nut for 6mm cable adjusters



D  #MAG-002 -       $9.00 each

   bronze alloy 10mm cable adjusters for BMW

A



B



C

D



E

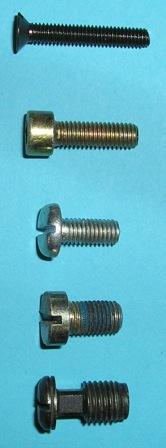

NOS  SCREWS



A  #MAG-005  -       $ .50 each

   black 4mm counter sink screws 25mm long



B #MAG-001  -       $ .50 each

   5mm allen head screw, 15mm long



C  #MAG-165 -       $ .25 each

   5mm slot head screw, 12mm long



D  #MAG-033 -       $ .50 each

    6mm slotted cheese head screw, fine thread, 10mm long



D  #MAG-068 -        $.50 each

     special slot head screw, 8mm thread, 14mm long

A



B



C

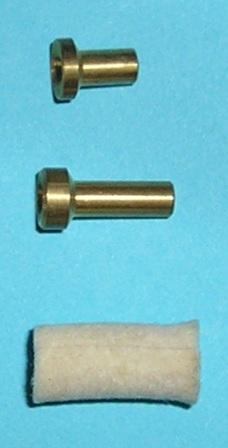

NOS  CABLE NIPPLES



A  #MAG-022  -       $ .50 each  or 10 for $4

    brass nipple - 8mm long - for 2mm cable

         Magura part #0720240

B #MAG-010  -       $ .50 each  or 10 for $4

    brass nipple - 13mm long - for 2mm cable

         Magura part #400040

B #MAG-018  -       $ .50 each  or 10 for $4

    brass nipple - 13mm long - for 2.5mm cable

         Magura part #400060



C  #MAG-003 -       $ .75 each

    felt cable packing 7 x 16 mm

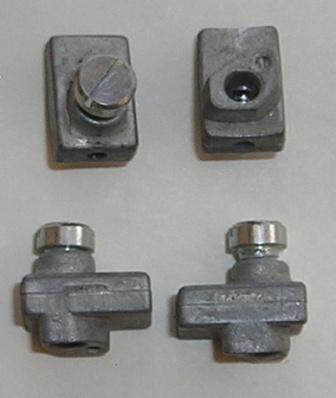

NOS  Sliding Clamp with screw



#MAG-040  -       $ 4 each

    fits Magura model 273 throttle/ brake lever assy

  size 12mm long x 7.8mm wide x 8.8mm high

    set screw to pinch up to 1.6mm diam. cable

        Magura part #0720300 (old #0311680)

A



B

C

D



E

F

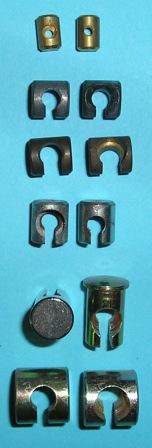

NOS  CABLE BARRELS



A  #MAG-155  -       $ .50 each  or 10 for $4

    brass barrel, 5mm diam x 7.5mm long, for 2mm cable

        Magura part #0720249

B #MAG-037  -       $ .50 each  or 10 for $4

    steel barrel 8mm diam x 9mm long



C  #MAG-076 -       $ .75 each

    brass barren 8mm diam x 9mm long, wide slot

         Magura part #0720230

D  #MAG-036 -       $ .75 each

    chrome barrel 8mm diam x 9mm long, slit open end



E  #MAG-035 -       Temp out of stock

    steel barrel, 10mm diam head, 8mm shank x 14.5mm long,

         open end  (Magura part #0720233)

F  #MAG-069 -       $ .75 each

  steel barrel, 12mm diam x 11.5mm long

        (for BMW brake cables Magura part #411770)

A





B

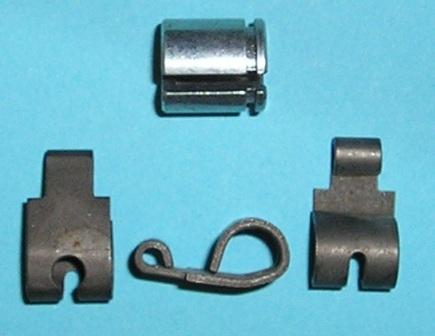

NOS Throttle Cable Parts



A  #MAG-118  -       $ 2 each

    BMW cable abutment bushing, 11mm diam. x 12mm long



B #MAG-006  -       $ 2 each

     replacement single cable pull for throttle



A



B

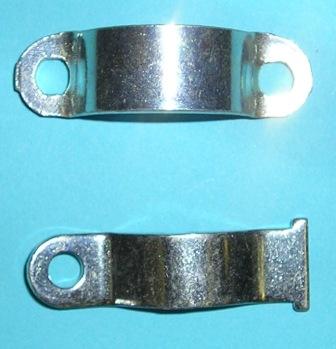

      Clamps



A  #MAG-185  -       $ 2 each

    zinc plated steel - 34mm eye to eye



B #MAG-014  -       $ 2 each

    zinc plated steel - 1 bolt hole



A



B



C



D

E

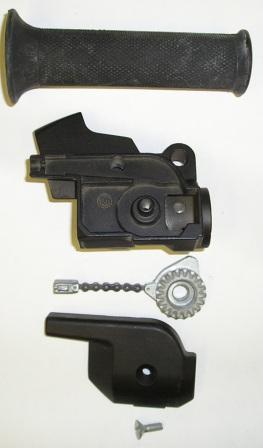

 NOS Model 157 BMW Throttle Parts

Replacement parts for 157.4 throttle

#MAG-062  - grip -        $9 each

#MAG-058  - housing -     $32 each

#MAG-065  - cable cam $12 each

#MAG-063  - cover plate -   $9 each

#MAG-067  - c-sunk screw $ .75 each

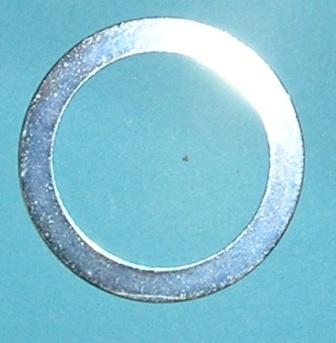

NOS  Spacer Washer for Throttle

Replacement part, 32mm O.D. x 24.2mm I.D., 0.5mm thick

Magura part no. 407830

  #MAG-177  -         $ .25 each
