BING CARBURETOR PARTS

COVER PLATES / HARDWARE / JETS / CLIPS / TICKLERS



    Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

   or e-mail us a list of your quantities and part numbers pentonpartsusa@sbcglobal.net



(NOTE: parts are available only while supplies last - prices subject to change without notice)











 body type 84

 Bing 24-26-27mm carb









Body

type 54

  Bing 28 - 30 - 32 mm carb









body

type 54

    Bing 36mm carb

used Del Lorto 38mm Carb



  rubber mount PHBE type carburetor

   44mm O.D. manifold mount - 65mm O.D. intake bell

  choke lever - single cable for throttle

  Very good condition - used on 1980's KTMs

  #544-31-501-044  -  $160 each

 Note: limited quantity only 1 available

used Keihn 38mm Carb



  rubber mount PWK 37E2 type flat slide carburetor

   46mm O.D. manifold mount - 62mm O.D. intake bell

  choke lever - single cable for throttle

  Very good condition - used on 1990's KTMs

  #546-31-201-844  -  $150 each

 Note: limited quantity only 1 available

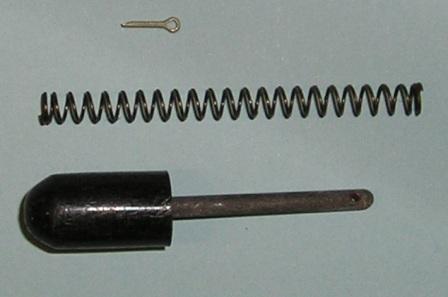

TICKLER KIT



#0661-110-000 -           $9.00 each

     replacement tickler kit (plunger stem + spring + cotter pin)

   fits all Bing Carbs having a 7mm (o.d.) brass tube









     A                      B                         C

Bing air box adapters

              fit onto the intake side of carb to fit securely to the Penton air boots



A- #51-06-029-000 - for 24 to 27mm Bings - $10 each

        rubber adapter for Sachs 100 &125s

B- #52-06-029-000 - for 28 to 32mm Bings - $10 each

        rubber adapter for KTM 175s

C- #51-06-029-600 - for 28 to 32mm Bings - $10 each

        Plastic adapter for 1976-77 KTM 125s - offset to fit air boots to

        MC5 & GS6 alloy air boxes



A



B



C

 24mm Slides



A -# BNG-22-560 -      $5 each

round slide with cutout for square choke slide

size 29.25 diam. x 42mm long - uses 72mm long needle



B - #BNG-22-460 -      Sold Out

round slide - no opening for choke slide

size 29.25 diam. x 42mm long - uses 72mm long needle



C - #BNG-22-105 -        Sold Out

size 5 - 72mm long jet needle - fits above slides - has 4 adjustment holes

26 & 27mm Pointy Top Needles (55mm long)

# 0661-114-001-2  -         $2 each

       size 2 needle (2 rings)

# 0661-114-001-4  -         $2 each

       size 4 needle (4 rings)

# 0661-114-001-5  -         $2 each

       size 5 needle (5 rings)

 26 & 27mm Flat Top Needles

      (52mm long - 2") for Bing 84 style

#0661-114-000-3 -    Sold Out

       size 3 needle (3 rings)

#0661-114-000-5 -    Sold Out

       size 5 needle (5 rings)

A



B

 Needle Clips for flat top needles

A - #0661-113-000 - 23mm diam -   $3 each

       clip for 24/ 26/ 27mm Bing (84) Carb

B - #52-31-132-000 - 21mm diam -   Sold Out

      clip for 24/ 26/ 27mm Bing (84) Carb



A



B

 28-32mm Slides

          measures 34mm diam. x 47.5mm tall

         has open slot for choke slide in bottom



A-  #52-31-135-002-( size 2) -     Sold out



B-  #52-31-133-000- choke slide       $5 each

                      measures 47.5mm long

slide on right shows deep notch cut-out for throttle stop screw - for use on 84/32/112 carbs only



B

 32mm Slides for 84/32/112 carbs

          measures 34mm diam. x 47.5mm tall

         has open slot for choke slide in bottom

 #52-31-135-100- slide w/ cut-out        $30 each

    NOTE: this slide will not work in Bing 84 carbs prior to 1977



B  - #52-31-133-000- choke slides       $5 each

                      measures 47.5mm long

 28-32mm Needles (58mm long - 2-1/4")

#52-31-134-001 -    $2 each

       size 1 needle (1 ring)

#52-31-134-003 -   Sold Out

       size 3 needle (3 ring)

#52-31-134-004 -   Sold Out

       size 4 needle (4 rings)

#52-31-134-6G1 -    $2 each

       size 6G1 needle

 28-32mm Spring Retainers

    for 28/ 30/ 32mm Bing slides

#51-31-131-000 -    $6 each

       fits inside the slide to lock in the cable

 Slide Springs

   for use in Bing 24 - 27mm carbs

#0639-105-000 -        $4 each

NOTE: when stretched out this spring can be used in the 36mm Bing slides

 36mm Slides



#54-31-135-002-( size 2) -        $30 each

           measures 40mm diam. x 55.5mm tall

         has open slot for choke slide in bottom (not shown)

#54-31-130-000- spring for slide    $4 each

 36mm Spring Retainers

   for 36mm Bing slides



#54-31-131-000 -    $8 each

       fits inside the slide to lock in the cable

   34-36mm Needles (63mm long - 2-1/2")

#54-31-134-001 -    Sold Out

       size 1 needle (1 rings)

 38mm Slides



#510-31-135-(specify size) -       Sold Out

           available only in size:  230

           measures 42mm diam. x 53mm tall

           slot for choke slide is filled in at bottom

 38mm Needles (69.5mm long - 2-3/4")

#51-31-134-361 -    $3 each

       size 1 needle (1 rings)

#51-31-134-364 -    $3 each

       size 4 needle (4 rings)



A

B

C

 38 & 40mm Needles

    step down style

A - #510-31-134-100 -   Sold Out

       size 4K2 needle - 69mm long

B - #510-31-134-200 -   Sold Out

       size 6L2 needle - 69mm long

C - #510-31-134-400 -    $5 each

       size 6L6 needle - 85mm long

Rubber Cable Boot



#52-31-138-000 -           $1 each

       fits 6mm choke and throttle cables, extra long to slide over cable adjuster, 25mm long



A



B



FLOAT BOWLS



A- #0661-122-000 -           $6 each

             float bowl for 26/ 27mm

     NOTE: does not have vent tube inside bowl



B- #52-31-111-000 -          Sold Out

             float bowl  for 26/ 27/ 28/ 30/ 32

             has vent tube inside bowl





A





B

FLOAT BOWLS



A- #54-31-111-000 -   used       Sold Out

             used float bowl with extra deep well on

             bottom for 36-38mm



B- #510-31-111-100 -          Sold Out

             float bowl with aluminum drain cap and

             washer on bottom for 36-38mm



      extra aluminum drain cap - #510-31-114-000  - $2 each

A



B



C

FLOAT BOWL PARTS



A- #51-31-115-000 -       $4 each

        aluminum drain cap for bottom of float bowl #510-31-111-100

        17mm diam thread, Bing part no. 50-286  (includes seal ring)



B- #52-31-110-000 -           $3 each

             cork gasket for all Bings



C- #52-31-114-000 -            $3 each

              clamp for all Bing float bowls

A



B





C



D





E



F

Screws and Springs

A- #52-31-117-000 -           $1.60 each

            air adjustment screw

B- #52-31-116-000 -           * Sold Out *

             spring for air adjustment screw

C- #52-31-119-000 -           * Sold Out *

            slide stop screw

D- #52-31-118-000 -           $1.00 each

            spring for slide stop screw

E- #52-31-104-000 -          Sold Out

            pinch bolt for clamp

F- #52-31-106-000 -            $ .50 each

           nut for pinch bolt

A





B





C





D

A- #52-31-136-000 -            * Sold Out *

           vaporizer for 28-30-32mm

B- #54-31-236-000 -            * Sold Out *

           vaporizer for 36-38mm  - (only 1 in stock)



C- #0661-117-000    -           $4 each

            Mixing Tube /main jet holder  27mm long, 12mm diam.



D- #52-31-123-(add size to #)  -     $6 each

            main jet  available only in sizes:   090 / 095 / 100 / 105 / 110

              115 / 120 / 125 / 130 /  170





A 24to27mm





B

28to32mm







C 36to38mm







D

 BING NEEDLE JETS

A- #0661-116- (add size to #)  -     $7.50 each

       for 24-26-27mm (7.5mm D x 14mm L - Bottom 4.5mm L)

          available only in sizes:   2.73 / 2.76 / 2.80



B- #52-31-121- (add size to #)  -     $7.50 each

       for 28-30-32mm (7.5mm D x 16.5mm L - Bottom 7mm L )

           available only in sizes:    276 / 280



C- #54-31-121-(add size to #)  -      $7.50 each

         for 36mm    (7.5mm D x 20.5mm L - Bottom 11mm L)

         available only in sizes:  270 / 273 / 274 /  290 / 316



D- BING #56-140 - (add size to #)  -   Sold Out

 (9.75mm D x 20.5mm L - Bottom 12mm L)



BING IDLE (pilot) JETS





#52-31-107-0 (add size to #) -   $9 each

           available only in sizes     40 / 45



A





B



C

COVER PLATE

               for 24-26-27mm Bing (84) carburetors



A- #0661-074-008 -       Sold Out

       cover cap with double hole for cable adjusters

       for carbs with square choke inside slide



B- #0661-119-000 -         Sold Out

       cover cap with single hole (in center) for cable adjuster

       for carbs with side choke



C- #52-31-125-000 -         Sold Out

        cable adjuster screw and nut



A









B







C







D

COVER PLATES for Bing 54



A- #52-31-127-000 -     Sold Out

     for 28-30-32mm, includes rubber sealing ring

    #52-31-128-000 -       $ .90 each

      rubber sealing o-ring



B- #54-31-127-000 -       $12 each

            for 36mm, includes rubber sealing ring

     #54-31-128-000 -      $ .90 each

        rubber sealing o-ring



C- #510-31-127-100 -       Sold Out

           for 38mm



D- #52-31-125-000 -         Sold Out

           cable adjuster screw and nut



A





B





C





D

Clamps for Bing Carbs



A- #0651-102-000  -           $6 each

            fits 24-26-27mm carb

            39mm I.D.





B- #52-31-105-000 -          * Sold Out *

             fits 28-30-32mm carb

             46mm I.D.





C- #54-31-105-100 -           * Sold Out *

            fits 36mm carb

            50mm I.D.





D- #510-31-105-000 -          * Sold Out *

            fits 38mm carb







Have a question about which part is right for your bike?

Are you ready to place an order?



Call: Al Buehner - (216) 651-6559   Mon-Fri  8:30am to 4pm E.S.T.

or Fax us a list of your quantities and part numbers: 216-651-1620
