AIR BOX PARTS

for PENTON / KTM motorcycles

RUBBER BOOT AIR FILTERS / AIR FILTER CAGES / AIR FILTER OIL



Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

or e-mail us a list of your quantities and part numbers pentonpartsusa@sbcglobal.net



      (NOTE: parts are available only while supplies last - prices subject to change without notice)

RUBBER AIR BOX BOOT

fits all 1972-76 bikes with fiberglass air box to Bing Carb            made in USA

dimensions - aprox 4-1/2" long / aprox 4-1/2" I.D. for air box / aprox 2" I.D. for carb



#51-06-026-200 -         $ 48 each

               also - not shown

#52-06-029-000 - Bing carb rubber adapter for 175s - $9 each



A

large size





B

small size

 CLAMPS FOR PENTON AIR BOOT



A - #51-06-028-000 -          $ 7 each

          large size (110-130mm) clamp for air box

B - #51-06-027-000 -          $ 4.50 each

          small size (40-60mm) clamp for Bing carb











           A                      B                         C

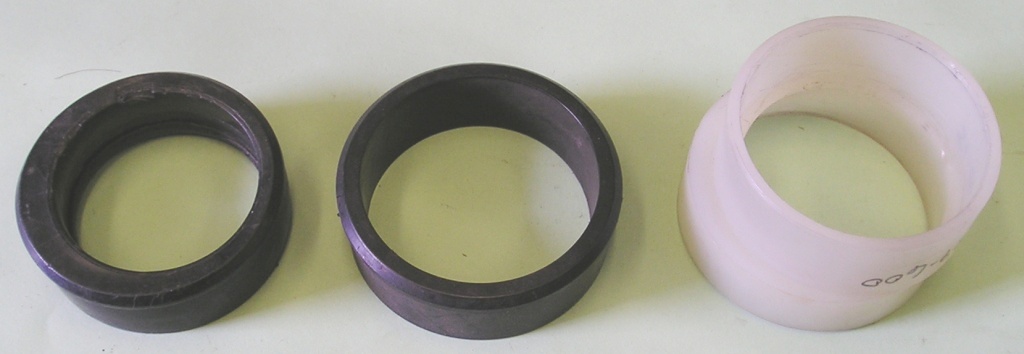

Bing Air Box Adapters

  fit onto the intake side of carb to fit securely to the Penton air boot #51-06-026-200



A- #51-06-029-000 - for 24 to 27mm Bings - $10 each

        rubber adapter for Sachs 100 &125s / 2" O.D. x 40mm I.D.

B- #52-06-029-000 - for 28 to 32mm Bings - $10 each

        rubber adapter for KTM 175s / 2" O.D. x 43mm I.D.

C- #51-06-029-600 - for 28 to 32mm Bings - $10 each

        Plastic adapter for 1976-77 KTM 125s - offset to fit air boots to

        MC5 & GS6 alloy air boxes

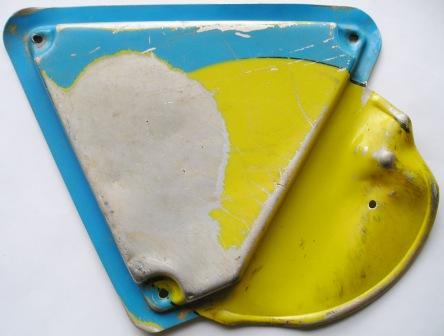

 Used Air Box Covers

  full alloy covers with extended number plate

 used cover may be bent to fit over lay down shocks and or may be cracked

 or have worn mounting holes. Alloy cover can be straightened and heliarc welded.

 All used covers need painting.



  #51-06-041-used                      - $90 each

      NOTE: limited quantities available only while supply lasts

              Cover shown in photo is for reference only - not what will be shipped.

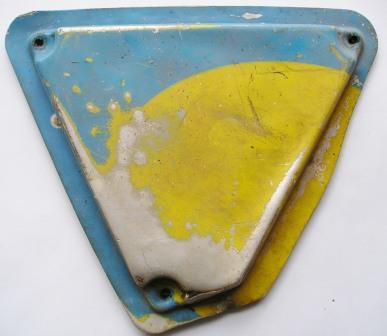

 Used Air Box Covers

  alloy covers - extended number plate cut off

 used cover may be cracked or have worn mounting holes.

 Alloy cover can be straightened and heliarc welded.

 All used covers need painting.



  #51-06-041-cut                      - $50 each

      NOTE: limited quantities available only while supply lasts

             Cover shown in photo is for reference only - not what will be shipped.

NOS Air Box Cover

 NOS plastic cover - with curve cut for shock clearance



 #54-06-041-000   - sold out

      NOTE: only 1 left in stock

             Cover shown in photo is what will be shipped.

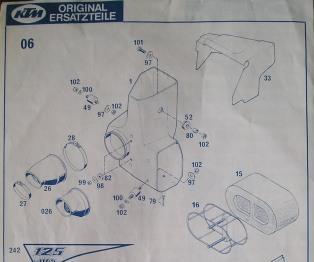

 1978 KTM MC-5 Air Box Diagram

 for reference use only - these items not necessarily available

  1 - #55-06-101-000  Air Box

  15 -  #55-06-115-000 Air Filter

  16 - #55-06-116-000  Air Filter Cage

  26 - 51-06-026-500  Air Boot for 125

  026 - #55-06-026-500 Air Boot for 250/ 400

  33  - #55-06-033-000  Air Box Cover

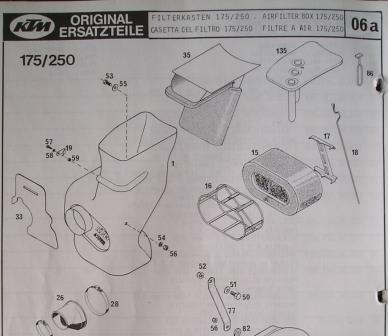

1979-80 KTM  Air Box Diagram

 for reference use only - these items not necessarily available

 1   - #550-06-101-100 Air Box

 15 -  #54-06-015-000  Air Filter

 16 -  #550-06-116-100  Plastic Air Filter Cage

 17 -  #550-06-017-000  Plastic Filter Support

 18  - #550-06-018-000  Support Rod

 19  - #550-06-019-000  Rubber Hook for Support

 26 - #52-06-026-600  Rubber Air Boot for 175/ 250

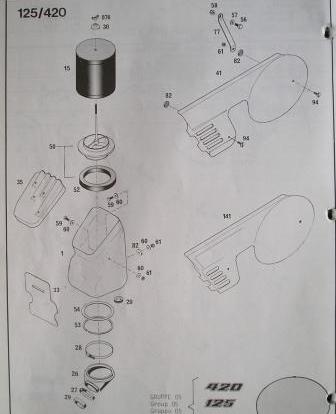

1979-81 KTM 125/ 420/ 495 Air Box Diagram

 for reference use only - these items not necessarily available

  1   - #560-06-001-000  Air Box

 15 -  #560-06-015-000  Air Filter

 26 -  #560-06-026-000  Rubber Air Boot

 33 -  #560-06-033-000  Water Protection

 35 -  #560-06-035-000  Air Box Cover

 36 -  #560-06-036-000  Plastic Band

 50  -  #560-06-050-044  Flange Complete

 52 -  #560-06-052-000  Foam Gasket

 53 -  #560-06-053-000  Circlip size SW90

 54 -  #560-06-054-000  Ring

        75mm long      made in USA

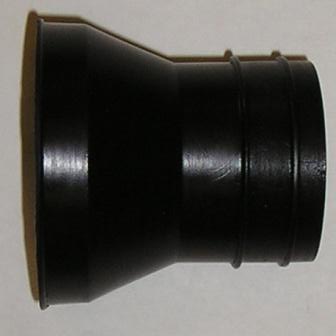

New Reproduction

RUBBER AIR BOOT

straight style for Aluminum Air Box, 2-7/8" long

to BING carburetor

for 1976 KTM MC-5 125, 250 & 400

     1977 KTM  MC-5 250 & 400

     1977-78 KTM GS-6 250 & 400

#55-06-026-000 -         $36 each

          black rubber air boot, 2-7/8" long

#51-06-027-000 -          $ 4.50 each

          small size (40-60mm) clamp for Bing carb

#55-06-028-000 -          $ 5.75 each

          medium size (60-80mm) clamp for air box











        70mm long      made in USA

New Reproduction

RUBBER AIR BOOT

offset for Aluminum Air Box,

70mm (2-3/4" ) long to BING carburetor,

  for 1977 KTM  125/ 175 MC-5 bikes

       1977-78 KTM 125/ 175 GS-6 bikes

#51-06-026-100 -         $36 each

          black rubber air boot, 2-3/4" long

#51-06-027-000 -          $ 4.50 each

        not shown -  small size (40-60mm) clamp for Bing carb

#55-06-028-000 -          $ 5.75 each

         not shown -  medium size (60-80mm) clamp for air box





61mm long



              made in USA

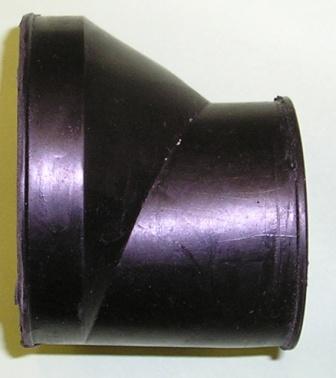

New Reproduction

RUBBER AIR BOOT

offset for plastic Air Box,

2-3/8" long to BING carburetor,

     for 1979 KTM 125 GS-

           1980  KTM MC-5 175 & 250 bikes

#52-06-026-100 -         $36 each

          black rubber air boot, 2-3/8" long

#51-06-027-000 -          $ 4.50 each

          not shown - small size (40-60mm) clamp for Bing carb

#55-06-028-000 -          $ 5.75 each

          not shown -medium size (60-80mm) clamp for air box







35mm long



        made in USA

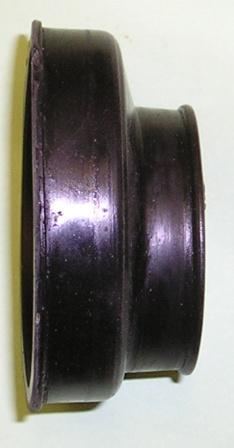

New Reproduction

RUBBER AIR BOOT

offset for plastic Air Box,

35mm (1-3/8" )  long to BING carburetor,



for 1977 KTM MC-5 400 bikes

      1979 KTM 250 & 400 GS & MC

#51-06-026-500 -         $36 each

          black rubber air boot, 1-3/8" long

#51-06-027-000 -          $ 4.50 each

           not shown -small size (40-60mm) clamp for Bing carb

#55-06-028-000 -          $ 5.75 each

          not shown -medium size (60-80mm) clamp for air box







51mm long



            made in USA

New Reproduction

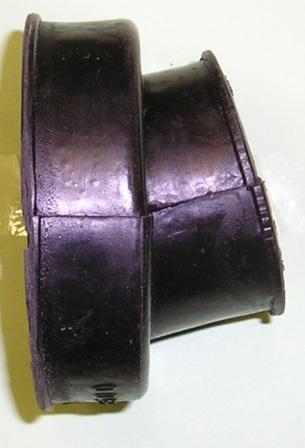

RUBBER AIR BOOT

offset  and cocked for plastic Air Box,

51mm (2" ) long to BING carburetor,

for 1981 KTM 250/ 350/ 390 bikes

#55-06-026-500 -         $36 each

          black rubber air boot, 2" long

#51-06-027-000 -          $ 4.50 each

           not shown -small size (40-60mm) clamp for Bing carb

#55-06-028-000 -          $ 5.75 each

           not shown -medium size (60-80mm) clamp for air box

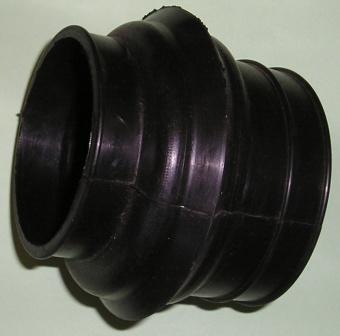

reproduction Lectron RUBBER AIR BOOT



offset  rubber boot to fit 1976-78 MC5 and GS6 frames with alloy air box and 1979-80 frames with plastic air boxes

#52-06-026-500 -         Sold out

          black rubber air boot, 2-3/4" long  (70 mm)

       small end I.D.-   67 mm (2-5/8")

       large end I.D. -  71 mm (2-7/8")

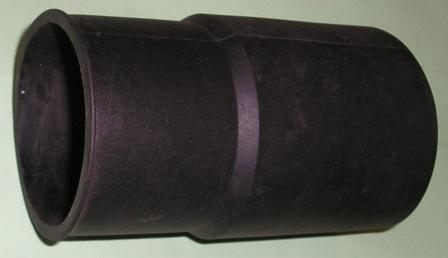

 Generic Rubber AIR BOOT

  2 styles - cut to fit length



 #99-LAB1 -      $10 each

   small end I.D. 62mm (2-1/2")

   large end I.D.  70mm (2-3/4")

   length 130mm (5-1/8")

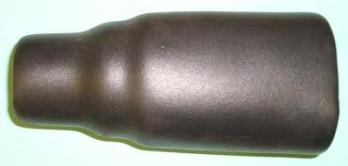

 #99-LAB2 -      sold out

   small end I.D. 62mm (1-5/8")

   large end I.D.  70mm (2-3/4")

   length  170mm  (6-3/4")

   middle section I.D.  58mm (2-1/4")

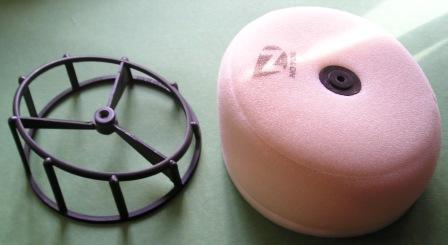

No-Toil 2 Stage Air Filter



#54-06-015-000 -      $28 each
       for 1972-75  w/ fiberglass air boxes

       also 1978-79 w/ plastic air boxes
               made in USA

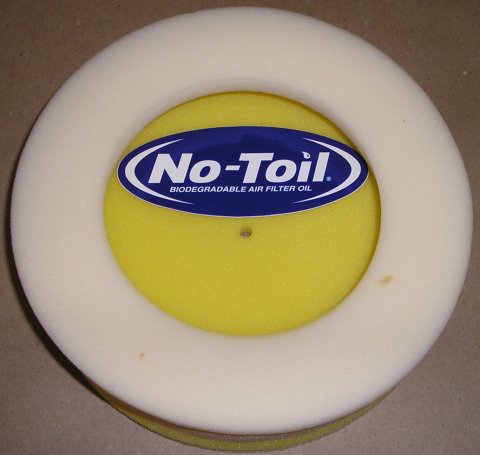

No-Toil 2 Stage Air Filter
two stage round shaped foam filter for 1976-78 aluminum air boxes.


#55-06-015-044 -        $28 each

                      made in USA

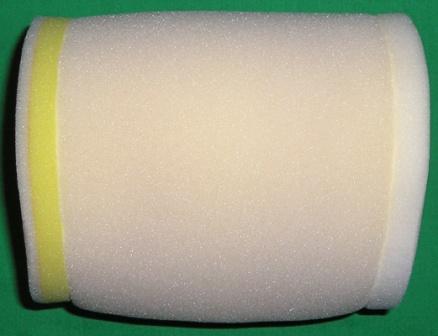

No-Toil 2 Stage Air Filter

canister shaped foam filter for

    1979 KTM 420,

    1980 KTM 125/ 420

    1981 KTM 125/ 420 / 495.

For plastic air box with threaded centering rod and air boot at bottom of box.

#560-06-015-000 -        $28 each

                          made in USA

No-Toil 2 Stage Air Filter
angled shaped foam filter for KTMs with square shaped black plastic air boxes

    1983 - 125, 250, 420, 495

    1984 - 250s, 420, 495

#543-06-015-000 -          $28 each

 NOTE: cage not included and not available

                       made in USA
