 SWING ARM PARTS

for 1981 - 2006

 KTM motorcycles

  Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

   or e-mail us a list of your quantities and part numbers pentonpartsusa@sbcglobal.net



(NOTE: parts are available only while supplies last - prices subject to change without notice)

This is a small sampling of the popular items requested for frame parts.

There are too many items in our inventory to be shown on this web site and there are many items that are not available or exist in small quantities.

Refer to the  KTM Parts Lists to find the drawing of the part you are in need of, write down the part number and call for pricing and an inventory check.



Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

or Fax us a list of your quantities and part numbers: 216-651-1620

 1984 KTM 495 Decal for Swing Arm

#564-03-029-000  -    $10 each



Lug D

10mm thick

flat spot

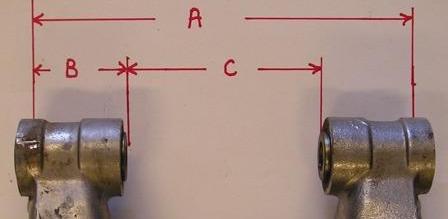

  Measurements for Swing Arms

  A = overall width

  B = width of arm

  C = width of gap between arms

  D = 10mm thick lug for brake caliper

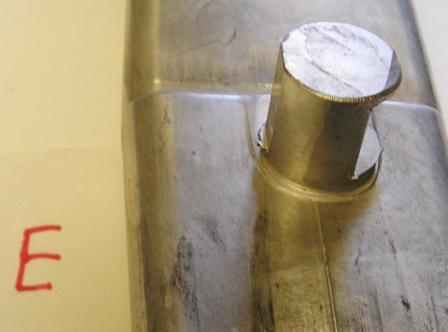

  E = 15mm thick lug for brake caliper

Lug E

15mm thick

flat spot
    10 mm upper & lower flat spot

 Swing Arm for SX bikes

 for 19997 to 2000 200/ 250 SX  bikes and 2003 LC4 SX

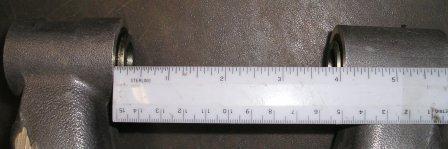

  A=  206mm overall width

  B=  51mm wide

  C= 106mm gap spacing for swing arm attachment to frame

  D = 10 mm double flat gusset for brake caliper

   25.5" overall length



#548-04-030-044 -          new    $525 each

                                      used    $300 each



15mm upper lug flat,

slightly flat

on bottom

  Swing Arm

for 1998 to 2002 bikes

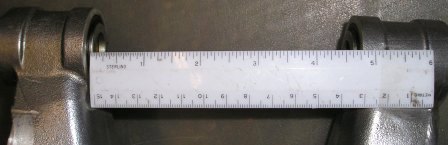

  A= 207mm length of outside casting of mounting

  B=  42mm wide

  C= 123mm gap spacing for swing arm attachment to frame

  E= 15mm  thick (round) gusset for brake caliper

   25-5/16" overall length

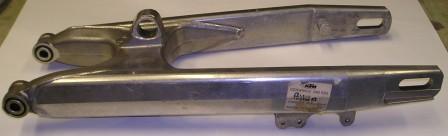

#590-04-030-244 -          new    $475 each

                                      used    $300 each

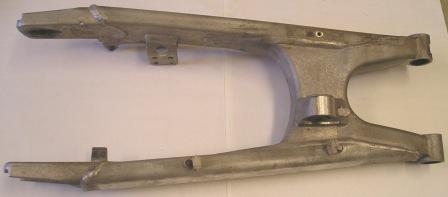

10 mm upper & lower flat spot   Used Swing Arms

  A= 206mm length of outside casting of mounting

  B=  42mm wide

  C= 123mm gap spacing for swing arm attachment to frame

  D = 10 mm double flat gusset for brake caliper

   25-3/4" overall length

#SO4-001 -    used    $300 each

15mm upper lug flat,

slightly flat

on bottom

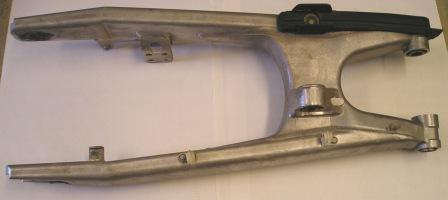

   Used Swing Arm

  A= 206mm length of outside casting of mounting

  B=  42mm wide

  C= 104mm gap spacing for swing arm attachment to frame

   E= 15mm  thick (round) gusset for brake caliper

   25-3/4" overall length

         note: only 1 in stock

#SO4-002 -    used    $300 each

15mm upper lug flat,

slightly flat

on bottom

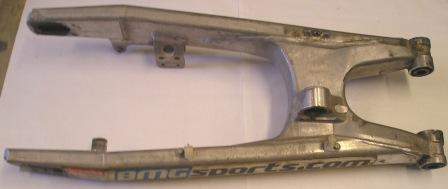

   Used Swing Arm

  A= 207mm length of outside casting of mounting

  B=  51mm wide

  C= 104mm gap spacing for swing arm attachment to frame

   E= 15mm  thick (round) gusset for brake caliper

   25-1/4" overall length

         note: only 2 in stock

#SO4-003 -    used    $300 each
10 mm upper & lower flat spot   Used Swing Arm

  A= 207mm length of outside casting of mounting

  B=  42mm wide

  C= 123mm gap spacing for swing arm attachment to frame

   D = 10 mm double flat gusset for brake caliper

   25-3/4" overall length

         note: only 1 in stock

#SO4-004 -    used    $300 each

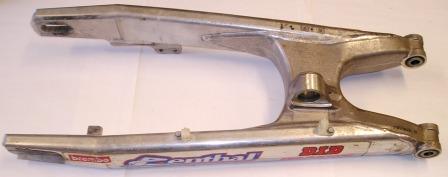

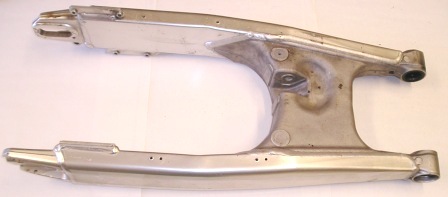

  Used Swing Arm

  A= 235mm length of outside casting of mounting

  B=  42mm wide

  C= 150mm gap spacing for swing arm attachment to frame

        has flat bar for brake caliper - slot for shock mount

   27-3/4" overall length

         note: only 1 in stock

#600-04-030-150 -    used    $300 each

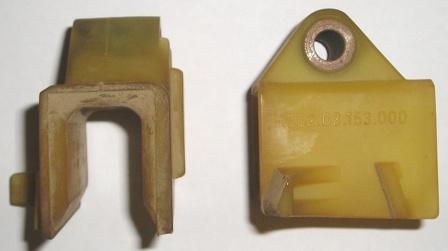

nos  Chain Guide

 fits 1989-91 KTM 125 motorcycles

#502-03-153-000 -        $16



 nos 420 Lower Chain Guide Block

 fits 1979-80 KTM 420 motorcycles

#560-07-066-000 -        $30

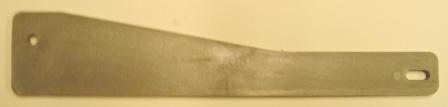

KTM Bottom Chain Guide

fits 1979- KTM MC 125 / 175 / 250 / 400 swing arm



#550-07-071-000 -      $10 ea

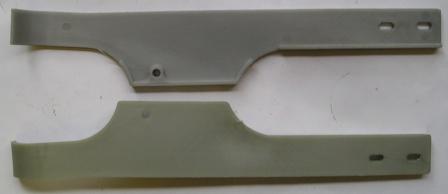

  KTM Bottom Chain Guide

fits 1979- KTM 420 swing arm

      1980  KTM 125 / 420

      1981 - 125/ 200/ 350/ 390/ 420/ 495

    NOTE: 125s require guide to be cut to 2nd slot

#560-07-071-000 -        $34 ea

  photo shows top and bottom of chain guide

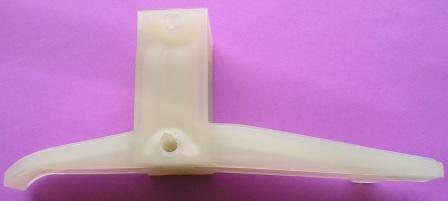

Upper Chain Guide & Block

fits 1982-85 KTM swing arms

#542-07-067-000 -        $36

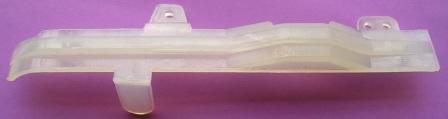

Lower Chain Guide

fits 1982-84 KTM 350/500/ 600 swing arm

      1983 125, 250, 420, 495

#542-07-073-000 -        $24

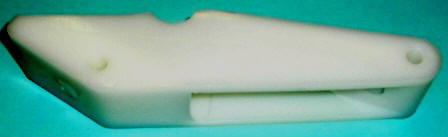

 reproduction Lower Chain Guide Block

fits the following KTM  motorcycles

 1981 250 / 350 / 390 / 420 / 495

 1982 250 / 495 / 350 / 500

 1983 125 / 250 / 420 / 495

 1984 125 / 250 / 420 / 495

#541-07-066-000 -        $40

 NOTE: This item can be used as a substitute

      for the #565-07-066-000 chain guide

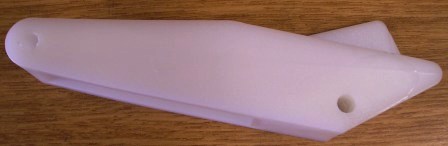

 reproduction Lower Chain Guide Block

fits the following KTM  motorcycles

below the swing arm before rear sprocket

1985-92   125, 240, 250, 300, 500

#565-07-066-000 -       $40

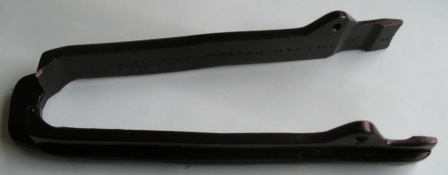

Reproduction front Chain Guide

fits top and bottom of swing arm

   for 1984+ 125, 250, 420, 495



#543-07-073-000 -   replaced with

  #564-07-073-000        $54
