Year, Size, Model Identification

     Every work day I receive calls from someone looking for parts to restore or repair one of the many models of Penton and KTM motorcycles that were sold from 1968 thru 1982. I am pretty good at knowing what some of the parts many people are calling about, especially if I know what year, model, and size of motor the bike is. It saves a lot of time if the caller knows this information before calling. It also helps if the caller has a part number to identify exactly what part that they are looking for.
     To identify what year, size, and model bike you have, write down the serial number off of the frame (stamped on the steering head). On the KTM motors, write down the number stamped on the ignition side of the center case (right under the cylinder fins).

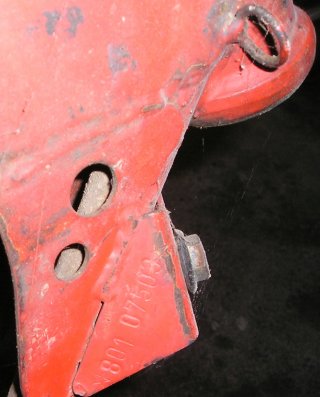

               Penton/ KTM Frame Identification



         1974 frame                      1976 MC-5                  1978 GS-6 frame

     The frame serial numbers contain a date code that identifies what month and year the bike was built. These number are stamped on or around by the steering head. In most cases (from 1972+) the first three numbers are the date code. The first number is the year, the next two are the month (eg. 403 = March of 1974).

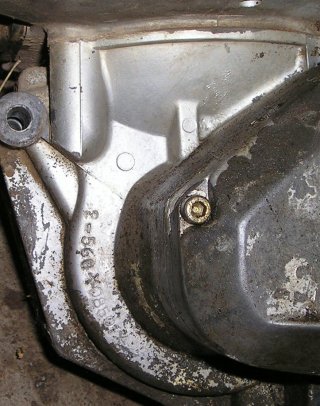

           KTM Motor Identification



                 1976- 400                                          1982- 420                                       1988- 350

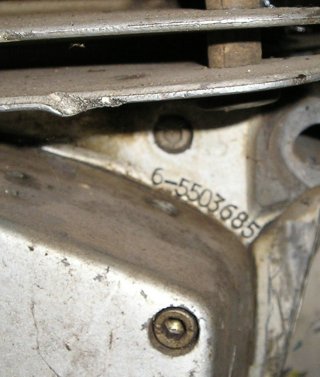

The KTM motor serial number also contain a code that identifies what year and what size the motor is. On the 1972-80 motors these numbers can be found on the ignition side - just below the cylinder fins. On 1978+ motors the number can be found on the clutch side - on the bottom front. The first three numbers are the code. The first number is the year, the next two are the code for the motor size. The following is a list of the different codes used from 1972 thru 2003:


51 = 125  1976-81                            52 = 175                                    363 = 50cc

450= 50 SXR/ S5-E/T/GS 1997        490 = 80cc LC 1986

510 = 125   1976-81                        520 = 175                                    503 = 125 1998-2001

54 = 250  1973-80                             55 = 400                                    523 = 200cc 1998-2001
540 = 250   1973-80                         550 = 400

500 = 125/II RV or II LC                  501 = 125 MX/MXC/GS (LC)    502 = 125 LC 1987-1992
503= 125 LC 1998                            523 = 200 LC 1998

541 = 250II GS(RV)                         542 = 250 MC                             565-30-005 = 500 LC 1990

543 = 250 LC                                    546 = 250/300/380 1996             547= 250/300/380  2000

555 = 350 LC 1986                           565-30-205 = 540 LC 1990

560 = 420   1979-84                         561 = 350  1980                           580-30-005 = 500 (90mm) 1988

562 = 390 GS   1980                         563 = 495  1980-83                     580-30-605 = 600 (95mm) 1988

583= 400/620SX,EGS LC4 1996      584= 400/620 LC4 1997              584= 625 LC4  2003

590 = 400/520 LC4  2000                 590 = 250/450/525 2003              770 = 250 LC4 SX-F 2005

LC = Liquid Cooled                LC4= Liquid Cooled 4 stroke         GS = Enduro
RV = Reed Valve                    MC = Motocross                            SX= Super Cross

     These codes are not only used to identify models on the motor cases, but are also used in the parts books to identity parts for these motors. In most cases, the first two or three numbers in a part number identify what size motor it goes to.

                                             Date Codes (clocks)

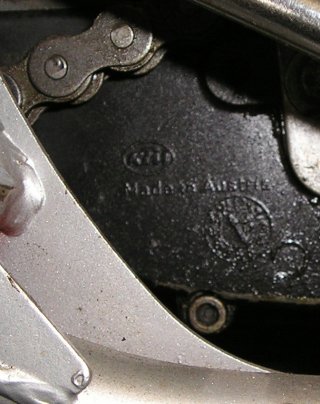

     There is a date code cast into every motor case around the drive sprocket area towards the lower rear part of the motor. It looks like a small clock with a triangular arrow in the center. The arrow points to a number on the clock indicating the month. There are two numbers under the arrow which indicate the year.

There are also part numbers cast into the outside of the center cases. The first two or three numbers are a way of identifying what size the motor is.

     It is important for everyone to be able to identify what year and size bike that they have. Most used bikes have the original motors still in the frames, however I have run across situations where the motors have been replaced with a dissimilar year. (e.g.. a 1979 frame with a 1976 motor). Although many of the early KTM motor parts are the same and are interchangeable (1974 thru 1979) there are differences in some of the parts especially the clutches, push rods, and bearing plates.

Owners manuals

     Owners manuals are a must for anyone who has a Penton motorcycle. It not only gives you step by step instructions on how to tear down the motor and rebuild it, it also gives all of the specifications for the bike along with recommended maintenance and adjustment of all of the components on the bike. For anyone who has just obtained a Penton for the first time, the owners manual is a must. The manual should be read first before tearing into anything on the bike!
     Owners manuals are available. Go to the Repair Manuals - KTM page.

Parts lists

     Parts lists are available showing every part on the bike and motors and identify everything with a part number. The illustrations help in determining if something is missing, what order the parts go in assembly, and how many there should be. The part numbers help you to obtain the exact part that you need.
     For the 1972 thru 1973 they are sold by model size. For 1975 thru 1977 they are sold by model year and include the parts for the 125/175/250/400 in the same list. Go to the Repair Manuals - KTM page.

Piston Specifications

When to Re-bore a Cylinder


Maximum allowable piston to cylinder clearance
125cc - .0055” to .006”

175cc - .006” to .007”

250cc - .006” to .007”

400cc - .006” to .007”



Specifications for Ring End Gaps
minimum maximum

125cc - .007 - .008 .015

175cc - .010 - .012 .018 - .020



Clearance Specs for Boring Cylinders

125cc - .0025” to .003”
175cc - .003” to .0035”
250cc - .0025” to .003”
400cc - .003” to .0035”


KTM Motor Tips

Do not remove the stop bolt for the kick starter, on the bottom of the motor, to drain the oil. Follow the directions in the owners manual to do oil changes. When doing an overhaul of the motor, remove the stop bolt after removing the kick starter shaft. Check the bolt for wear. If it is worn flat, replace it.

On the black motors, check for cracks around the hole in the case for the kick-start stop bolt. Cracks and breaks can be welded. ALL KTM MOTORS ARE MADE OF MAGNESIUM. Take it to a certified welder with experience. They use magnesium welding rods. Small cracks can be repaired with JB Weld or any high temp. epoxy to seal oil leaks.

On 250, 400, 420, and 495 motors, check and tighten any loose nuts and bolts after every race day. Pay attention to the motor mounting bolts on all big bore bikes. Loose bolts will allow the vibration of the motors to wear away the magnesium mounting areas.







Casting mark under exhaust port

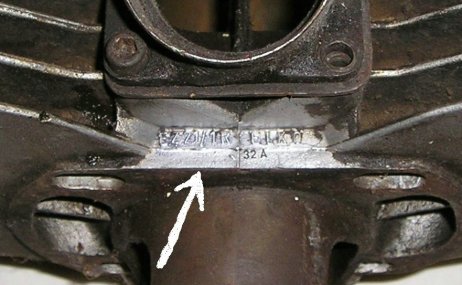

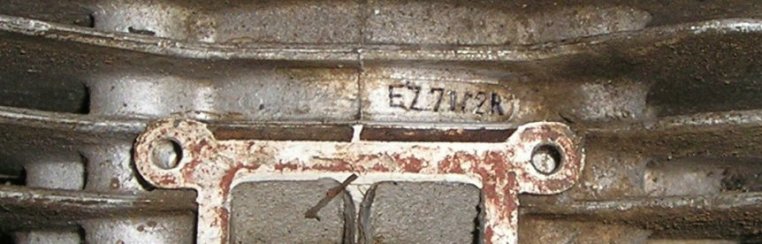

250 casting mark above intake

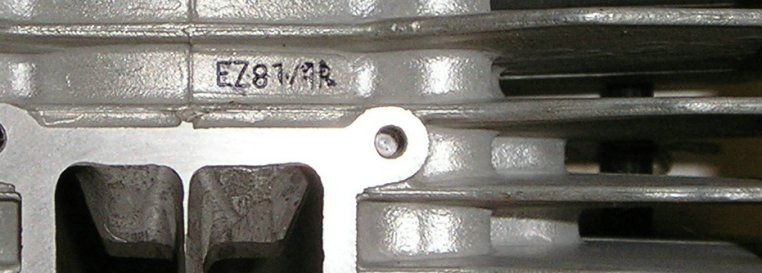

400 casting mark above intake

KTM Cylinder Re-sleeving



All KTM cylinders can be re-sleeved, however in some cases there are more than one style of sleeve for a size of cylinder - in particular the 250 and 400 cylinders.

The 250 cylinders could use a sleeve with a standard bore size of 71 or 72mm. Look for casting mark "ELKO EZ 71" or "ELKO EZ 72"

The 400 cylinders could use a sleeve with a standard bore size of 81 or 82mm. Look for casting mark "ELKO EZ 81" or "ELKO EZ 82"

Double check the casting marks on your cylinder (see above photos for locations) to determine what size cylinder that you have before calling to order a new sleeve.



The 1972-75 175 cylinders were throw-a-way cylinders that did not have replacement sleeves.  The cylinder must be over-bored to install a sleeve.



Do not take your cylinder to just any shop for re-sleeving or boring. Make sure that they have the experience of working on vintage 2-stoke cylinders. Shops doing work on the new motors can screw up your cylinder because there is a difference in setting them up.

KTM Liquid Cooled Engines - clutch case covers

Almost all KTM engines are made of magnesium. Water and magnesium do not get along with each other. Water (and moisture) will cause magnesium to corrode. This is a big problem with the Liquid Cooled KTM engines. The pump areas become corroded, eating holes into the case. Unless they are shown on this web site, replacement clutch cases are not available from me and as far as I know are not available anywhere in the USA. If the corrosion is not severe (metal around the seal eaten away), it will need to be cleaned up and repaired.

Repairs can be made by first cleaning out all the corrosion. This can be done by bead blasting it (bead blasting can cause more damage to area if you are not careful) or vapor blasting (a recommended method that will not tear up metal). Repairing the damage can be accomplished by the most common method  of using "JB Weld" epoxy. Another method is to reweld the area with a magnesium rod by someone who has experience with welding magnesium.

If the corrosion damage is severe, you will have to find another engine with a clutch case that is not damaged.

As a preventative measure, if your pump area is not damaged, it is recommended that you paint the inside pump area or coat it with "JB Weld" epoxy.

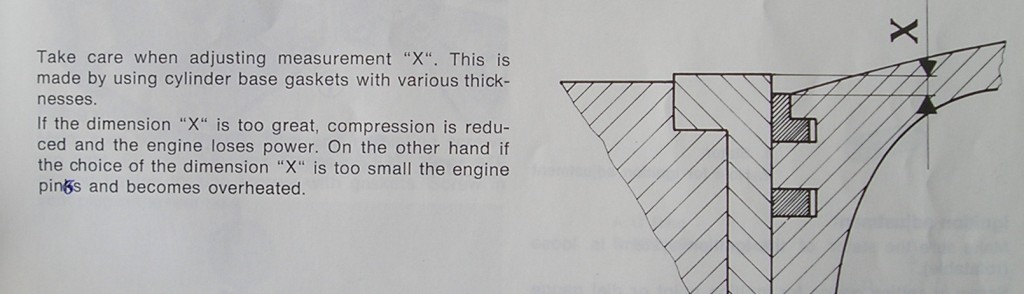

Setting KTM deck heights

All KTM engines require setting the deck height of the cylinder to establish the proper amount of compression.

The gaskets sets come with an assortment of different thicknesses of base gaskets. Use the proper thickness of base gasket or gaskets to set the deck height "x". NOTE: check the spec sheets for your engine. There is generally 2 specs - one for MC and one for GS. It is recommended that the GS specs be used on 400 engines to make them easier to start.



KTM Clutches

For clutch slippage and sticking the following steps should be followed in order:

  1. Check the clutch activator (the bearing plate) on the right side of the motor. Refer to the repair manual for the minimum clearance for the clutch activator arm. If your measurement is less than the minimum (42.5 to 43.5mm between the engine case and the inside curve of the arm) – remove the arm from the actuator and check for wear on the small pin inside the barrel connected to the arm which presses against the clutch rods. If the pin has a flat spot (after 25 years of use, most of these are) replace the pin.

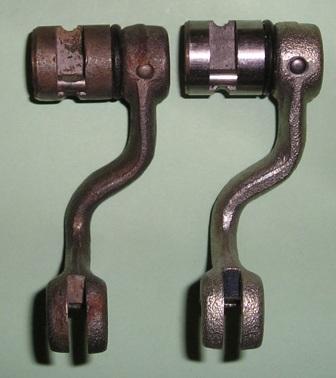

Left photo shows a new clutch arm (right) and a used clutch arm (left)

Right photo is an enlargement of the used arm, showing  the wear on the top of the pin shown in the center.





  1. If the clutch actuator arm is wobbly and loose inside the clutch actuator (it should be a snug fit) replace the clutch actuator (bearing plate) – part #51-32-013-344.

    2.   The clutch actuator and arm must be within specifications before dis-assembling the clutch. A loose or worn arm assembly will not allow enough pull against the clutch pressure plate to allow the plates to release.

  1. Before removing the clutch nuts, observe how many threads are showing through each nut. Remove the clutch plates and check for uneven wear, bent or cupped plates. Hold the plates together in a stack and see if there are any visible gaps between the plates. Replace any plates that are bent or causing gaps.

  2. Check all the clutch springs. They must be of the same wire thickness and same length. Check the parts list and repair manual for the spring specifications. Replace any mismatched springs.

  3. When re-installing the clutch nuts, they must have uniform pressure when tightened. Check the repair manual for specifications. In most cases, they should not have more than 1-1/2 threads showing above the top of the nuts.

  4. Use one continuous safety wire through all of the clutch nuts. You do not have to use individual cotter pins. The purpose of the cotter pins is to prevent the nuts from backing out and reaming a hole through your clutch case.

NOTE: Clutch plates can stick together if the motor has been sitting unused for a length of time (more than 1 month). Although I have not been able to prove it, it is my theory that the type of oil (gear lube) used in the bottom end has an effect on the clutch plates causing them to bond together. Sometimes the plates can be broken loose by starting the engine, pulling the clutch lever in and putting the bike in gear. Or while the bike is moving (at low speed) pull the clutch lever in and apply the brakes.

In worst cases, when a motor has been sitting for 10-20 years, it is best to open the clutch assembly and pry the clutch plates apart.

   How to identify Ceriani and Marzocchi leading axle forks

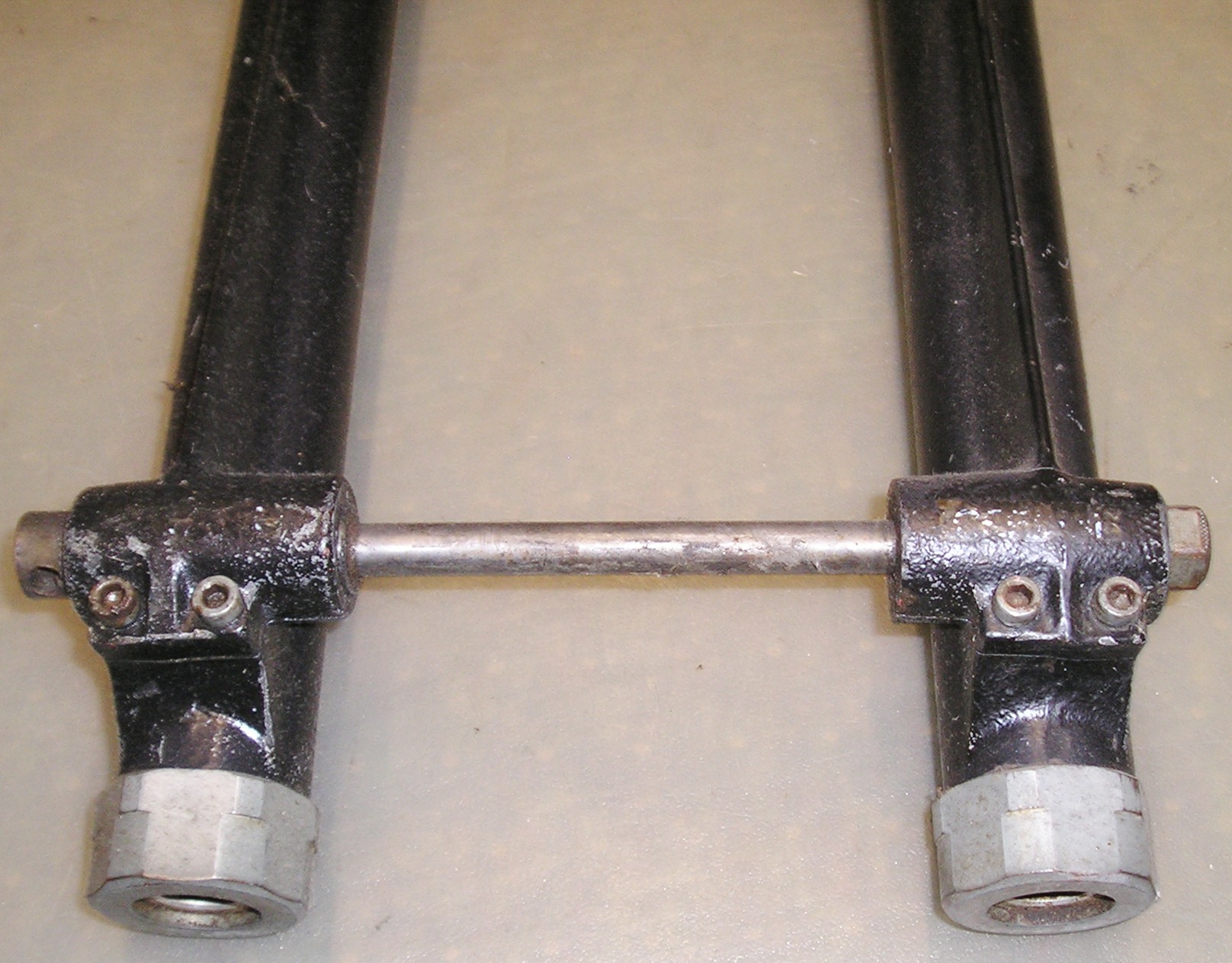

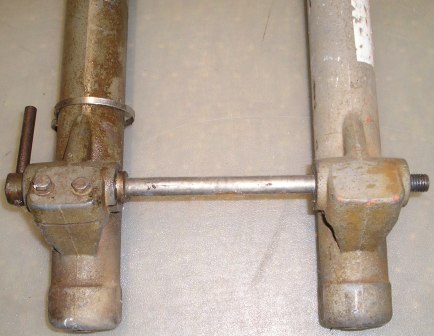

             Ceriani bottom legs                              Marzocchi bottom legs

    Above are photos of the Ceriani and Marzocchi leading axle fork legs so that you will be able to tell the difference. The very bottom of the fork legs is the give-away. The Ceriani forks have what look like huge hex nuts on the bottom. These forks legs were painted black. They were after market forks advertised in the Hi-Point catalogs around 1975. These forks take 4 ea  35mm 7mm thick seals (2 per leg).

The Marzocchi bottom fork legs are round and squared off on the inside and outside. These forks were painted grey, orange, or gold.

    Both forks are shown in the 1975 (late) Penton parts lists. The Marzocchi 35mm forks came equipped on the 1976+ MC5 bikes and were then equipped on the 1977+ GS6 bikes. In the 1980s the KTM brand bikes came equipped with 38mm, 40mm, or 42mm forks.

    Most of the 35 and 38mm Marzocchi forks take two 7mm thick seals in each leg. There are some that take only one 10mm thick seal per leg. The 40mm and 42mm forks take only one 10mm thick seal per leg.

    So, the difference would be 14mm or 10mm between the 2 snap rings in each fork leg. It is always best to remove the seal(s) to see how many seals are required. NOTE: Make sure that there is a snap ring above the seal. The wrong size seals are sometimes installed leaving no room to install the snap ring. Example – replacing a 10mm thick seal with two 7mm thick seals – which will cover up the groove for the snap ring.
