Wheel Parts for 1972-1989

PENTON and KTM motorcycles

SHOES / SPROCKETS / AXLES / BEARINGS / NUTS / CLIPS



(NOTE: parts are available only while supplies last - prices subject to change without notice)

This is a small sampling of the popular items requested for wheel parts.

There are too many items in our inventory to be shown on this web site

and there are many items that are not available or exist in small quantities.

Refer to the Penton / KTM Parts Lists to find the drawing of the part you are in need

of, write down the part number and call for pricing and an inventory check.



Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

or e-mail us a list of your quantities and part numbers pentonpartsusa@sbcglobal.net

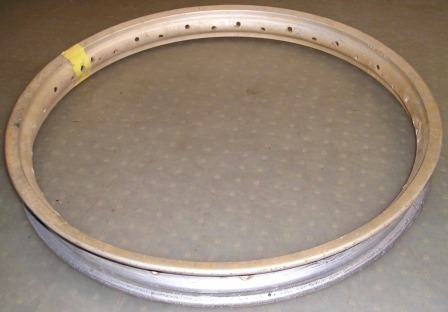

  used 21" SUN RIMs for Penton



#SUN-771000 -  used alloy rim    $75 each
    size 21" rim, 2-1/4" wide with 36 holes for Penton front hubs

   will require cleaning

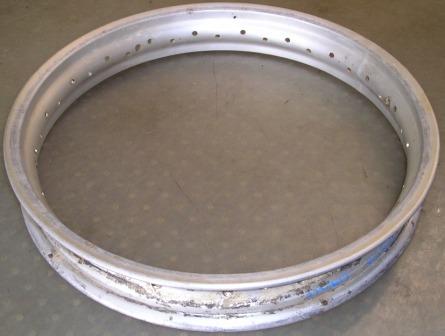

   18" rear SUN RIMs for Penton



#SUN-798004 - USED alloy rim    $75 each
   used will require cleaning

#SUN-798004 - NOS alloy rim    $95 each  only 1 in stock

  size 18" rim, 3" wide with 40 holes for Penton rear conicle hubs
A

B

C



   NOS Painted Front Spokes

         silver grey painted spokes used on 1972 & 73 Jackpiners

 A  #51-09-071-000 -  200mm long    $1.50 each

 B  #51-09-071-100 -  230mm long    $1.00 each

 C  #51-09-072-000 -  spoke nipples   $1.25 each

 C  #51-09-072-000 -  S.S. spoke nipples   $1.50 each

   Note: spoke nipples will fit only the painted spokes

A

B

   NOS Chrome Front Spokes

        chrome plated spokes used on 1973-77 bikes

 A  #51-09-071-400 -  230mm long outer    $1.75 each

      swedged shank spokes 3.5mm diam thread

 B  #51-09-171-400 -  230mm long inner    $1.75 each

   Note: spoke nipples not available

A

B

C

D

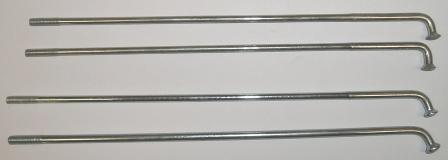

  NOS Chrome Rear Spokes

        chrome plated spokes used on 1973-78+ KTM bikes

 A  #51-10-071-400 -  190mm long outer    $1.75 each

      swedged shank spokes 3.5mm diam thread

 B  #51-10-171-400 -  190mm long inner    $1.75 each

      swedged shank spokes 3.5mm diam thread

 C  #51-10-071-500 -  200mm long outer    $1.75 each

      swedged shank spokes 3.5mm diam thread

 D  #51-10-071-600 -  200mm long outer    $2 each

      straight shank spokes 4mm diam thread

   Note: spoke nipples not available

A

B

   NOS Chrome Front Spokes

        chrome plated spokes used on 1978+ KTM bikes

 A  #55-09-071-000 -  255mm long outer    $1.75 each

      swedged shank spokes 3.5mm diam thread

 B  #55-09-171-600 -  255mm long outer    $2 each

      straight shank spokes 4mm diam thread

   Note: spoke nipples not available

A

B

C

D

E

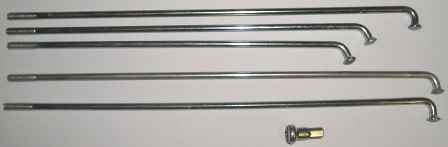

    NOS Chrome 4mm Spokes

        chrome plated spokes used on 1981+ KTM bikes

 A  #510-09-171-600 -  230mm long inner    $2 each

      Front straight shank spokes 4mm diam thread

 B  #510-10-071-600 -  205mm long outer    $2 each

      Rear straight shank spokes 4mm diam thread

 C  #510-09-171-600 -  192mm long inner    $2 each

      Rear straight shank spokes 4mm diam thread

 D  #542-09-071-000 -  240mm long outer    $2 each

      Front straight shank spokes 4mm diam thread

 E  #542-09-171-000 -  240mm long inner    $2 each

      Front straight shank spokes 4mm diam thread

 #510-09-072-600 -  nipples    $2.25 each

      nipple for 4mm diam threaded spokes

  Penton/ KTM Brake Shoes & Pads

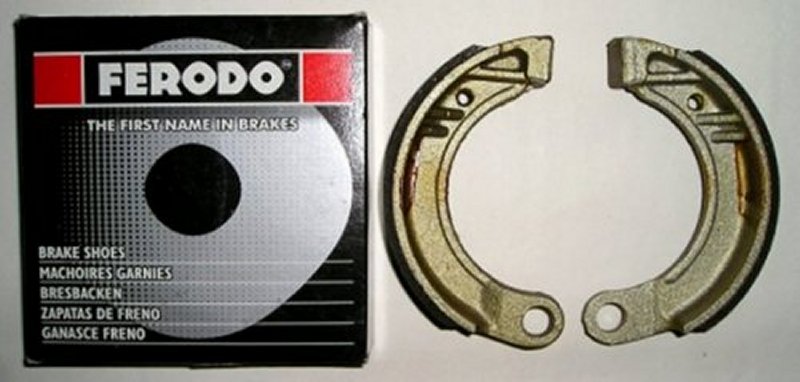

#31-09-035-000 -      $40 pair
         Ferodo brand front & rear shoes for 1968+ bikes

       includes spring (not shown)

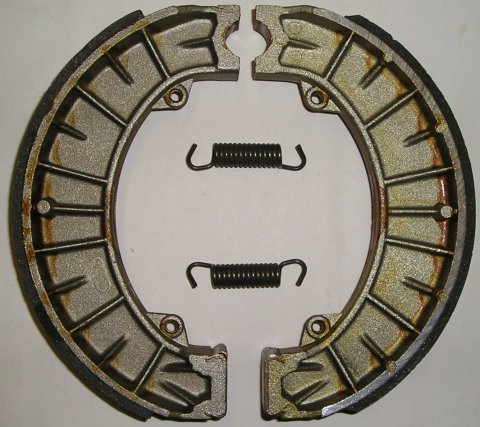

  Ferodo brand rear brake shoes
for 1973+ conicle hub bikes

#52-10-035-560 -       $75 pair
       includes 2 springs (as shown)
#52-10-036-000  extra springs - $4 each

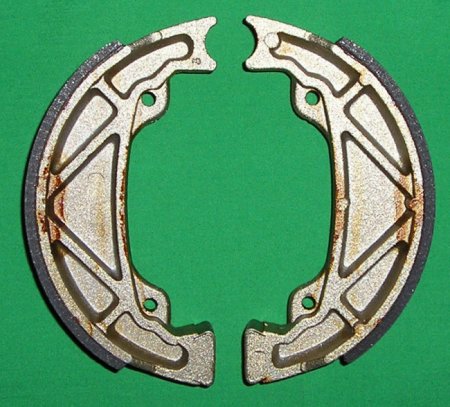

  EBC brake shoes
for 1982 – 250 & 495 KTMs

#542-09-035-000 -        $38 pair

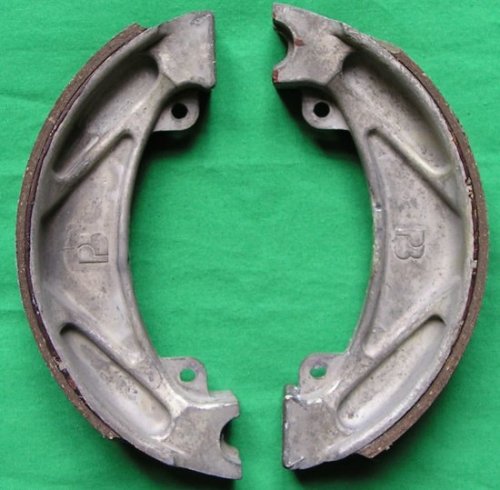

 Ferodo brake shoes
for 1983 – 250 & 1984-85 KTMs

#543-09-035-000 -        $38 pair



A

B

C



D

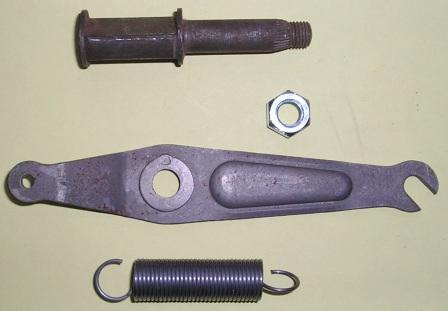

 Front Backing Plate Parts



 A -    #31-09-031-000 -      $26
            brake cam with taper (includes nut)

 B -    #0934-081-003 -      $ .25 each
            nut

 C -    #51-09-033-000 -      $12 each
            steel brake arm with extension for spring

 D -    #51-10-040-000 -      $4.50 each
            return spring

A

B

C



D

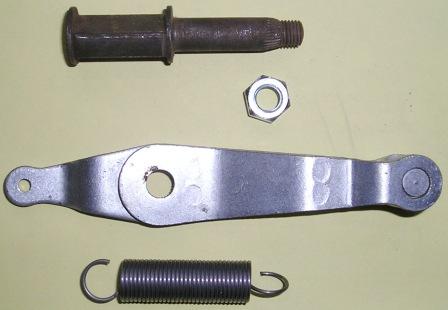

 Rear Backing Plate Parts for 1972-73 175 with straight hub



 A -    #31-09-031-000 -      $26
            brake cam with taper spline (includes nut)

 B -    #0934-081-003 -      $ .25 each
            nut

 C -    #51-10-033-000 -      sold out
            steel brake arm with extension for spring

 D -    #51-10-040-000 -      $4.50 each
            return spring

A





B



C

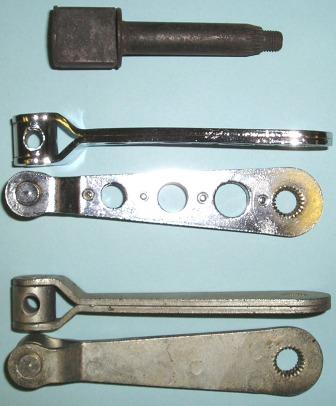

  Brake Arms for 1973 Penton

for conicle hub backing plates - with pivoting bushing with hole for brake rod



 A - #52-10-031-200 -        $26 ea

       cam with tapered spline & threaded end, 12mm shaft (includes nut)



 B - #52-10-033-000 -        $42 ea

       chrome brake arm, flat style, w/ tapered spline



 C - #52-10-033-100 -        $30 ea

       steel brake arm, flat style,  w/ tapered spline


A

B



C

D



E

F

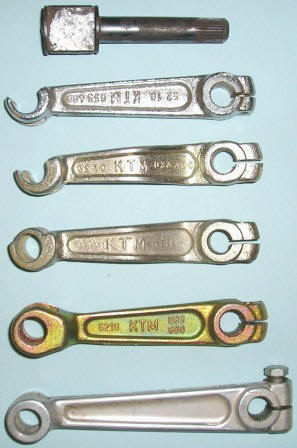

  Brake Arms for 1974+ Penton & KTMs

   for conicle hub backing plates



 A - #52-10-031-300 -        $26 ea

       cam with straight spline, 12mm shaft



 B - #52-10-033-400 -        $30 ea

        steel brake arm, flat style, w/ straight spline, open fingers

 C - #52-10-033-500 -        $30 ea

       steel brake arm, bent style, w/ straight spline, open fingers



 D - #52-10-033-700 -         Sold out

       steel brake arm, bent style, w/ straight spline, closed fingers

 E - #52-10-033-800 -        $32 ea

       steel brake arm, straight style, w/ straight spline, closed fingers



 F - #52-10-033-600 -        $46 ea

       alloy brake arm, straight style, w/ straight spline, closed fingers

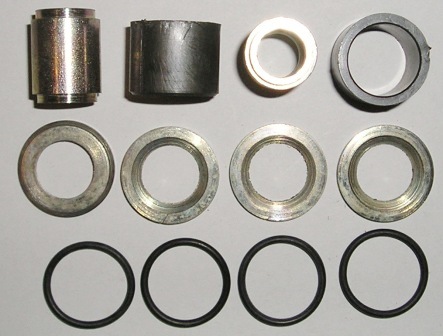

  NOS repair kit for 1979 MC brake anchor rod

  Fits all 1979 MC bikes including the KTM 420

  kit includes 2 steel inner bushings and 2 outer plastic sleeves, with 4 o-rings and 4 steel spacers

  to replace worn bushings in both ends of the brake anchor rod

 #55-03-079-044 -  repair kit      $12 ea





A



B

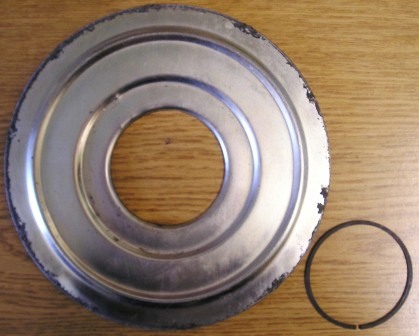

   NOS Cover for Conicle Rear Hub

Fits all 1973-1982  bikes with large conicle rear hub.

cover protects spoke ends from dust and dirt

circlip secures cover to hub

NOTE: cover may have some rust and corrosion from age


A  #52-10-034-100 –   cover  - $12 each


B  #52-10-095-000 –   circlip - $2 each





530 sprocket

for

cush

drive

hub



5.75" I.D.

made in USA

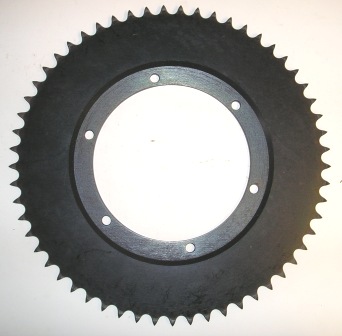

  NOS PENTON 175 REAR SPROCKETS

Fits all 1972-1973 175 bikes with round lug cush drive sprocket carrier with 5-3/4” diam. Center hole.
For size 530 chain


#52-10-051-055 –   55 T-  (black alloy)   $52 each
#52-10-051-057 –   57 T-  (black alloy)   $52 each
#52-10-051-060 –   60 T-  (black alloy)   $48 each



also available

#51-10-052-000   sprocket lock plates  -   $ 5 each

#0931-080-403   hex head bolt 8x40  -   $ .65 each

#0557-080-003   square nut, 8mm -        $ .24  each

Conical

KTM

rear

hub

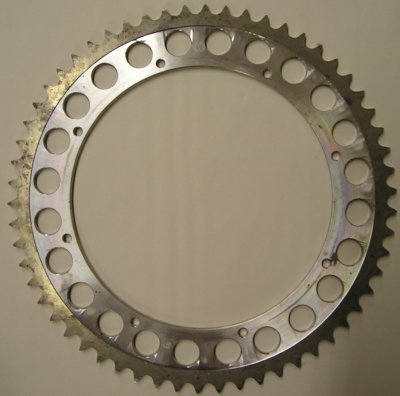

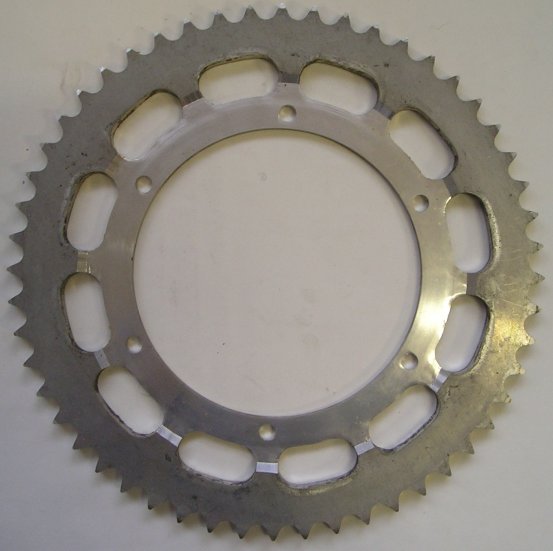

   SPROCKETS for 1973-83 conicle rear hubs
using size 530 chain (has 8 each  7mm bolt holes)

#52-10-051-149 - 49T -530-  (NOS alloy)   $48 each

#52-10-051-156 - 56T -530 -   (NOS alloy)   $52 each
#52-10-051-157 - 57T -530 -   (NOS alloy)   $52 each
#52-10-051-160 - 60T -530 -   (NOS steel)   $40 each

using size 520 chain (has 8 each  7mm bolt holes)
#51-10-051-552 - 52T -520 -  $86 each (new alloy)
#51-10-051-554 - 54T -520 -    $86 each (new alloy)
#51-10-051-556 - 56T -520 -    $87 each (new alloy)


#52-10-052-000  lock plates -     $5 each

Sprocket for

Conical

KTM

rear hub



7-7/8" I.D.

made in USA

Sprocket for

Conical

KTM

rear hub



6.5" I.D.

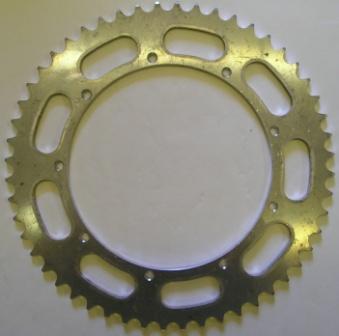

  size 520 SPROCKETS

for 1980 125 w/conicle rear hub

with 9 each (6mm) bolt holes, measures 6-1/2" I.D.



#510-10-051-052 -  52T    $58 each (alloy)

#510-10-051-057 -  57T    $60 each (alloy)

#510-10-051-058 -  58T    $62 each (alloy)

Sprocket for

Conical

KTM

rear hub



6.5" I.D.

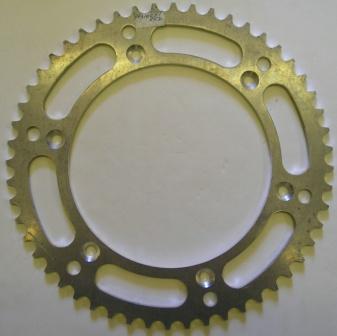

  520 SPROCKETS for 1984+ KTM's

with 6 each (8mm counter sunk) bolt holes,

measures 6-1/2" I.D.



#543-10-051-048 -  48T    $59 each (alloy)

#543-10-051-049 -  49T    $59 each (alloy)

#543-10-051-050 -  50T    $60 each (alloy)

#543-10-051-051 -  51T    $62 each (alloy)

#543-10-051-052 -  52T    $48 each (steel)



A







         B                       C              D

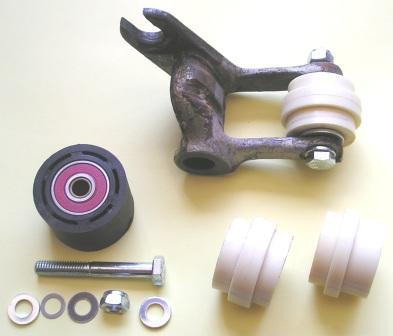

   CHAIN ROLLER KITS

for all 1976-78 Penton motorcycles using chain guide bracket (shown in photo)



 A -  # 55-03-052-544  used bracket assy   sold out

        used engine spacer bracket with nylon chain roller

         NOTE: brackets have some rust and some chain wear



 B -  # 55-03-053-044  chain roller kit         $28 each

        chain roller kit (roller, bolt, nut, 2 washers, 2 shims)

         For use with 520 or 530 chain -  Roller is imbedded with 2 ball bearings

 C -  # 55-03-053-100   530 chain roller           $8 each

        NOS nylon chain roller for 530 chain



 D -  # 55-03-053-200   520 chain roller           sold out

         NOS nylon chain roller for 520 chain



A   4 lug style



B  small size

C  large size

    made in USA

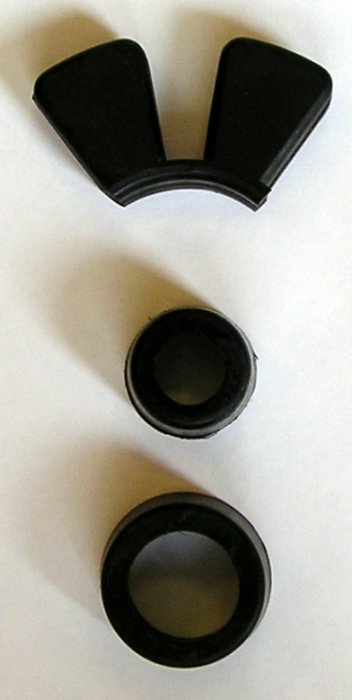

CUSH DRIVE RUBBER

for all Penton motorcycles using rear cush drive



A- # 6-50-000 -                sold out

          for 1968 bikes with 4 lug cush drive

B- # 51-10-059-000 -      $24 set of 6

           small size cush drive rubber (6 required)

C- # 51-51-10-059-300 -       $24 set of 6

            large size cush drive rubber (taper fit)

            O.D. 34-31mm  I.D. 23.5-21.8mm  H 17mm



A



B

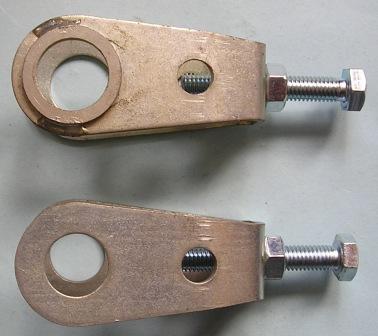

   used CHAIN ADJUSTERS

  for all CMF Penton motorcycles



A- #51-10-184-044 -               sold out

           Right side with spacer for 175s with cush drive



B- #51-10-084-044 -    used           $30 each

           Left and right side







   A                            B

REAR AXLE

for all 1972 thru 1973 CMF bikes using the cush drive straight rear hub



A- #51-10-085-000    $46 each

           rear axle

B- #0985-120-003     $ .70 each

           self locking 12mm nut





A

B

C

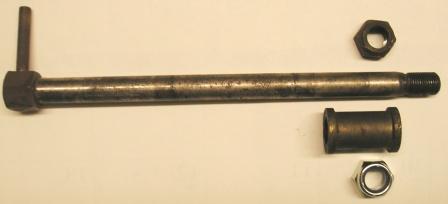

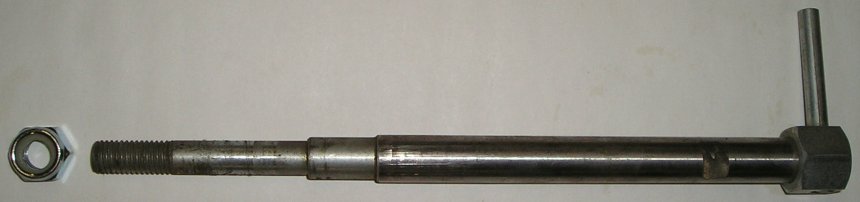

 Used REAR AXLE

for all 1973 thru 1978 CMF bikes using the conicle rear hub



 A- #52-10-085-used    $40 each

           rear axle with nut

 B- #52-10-057-000     $5 each

           outer spacer bushing

 C- #0985-161-503     $1.25 each

           16mm nut for rear axle







        A                    A                  B

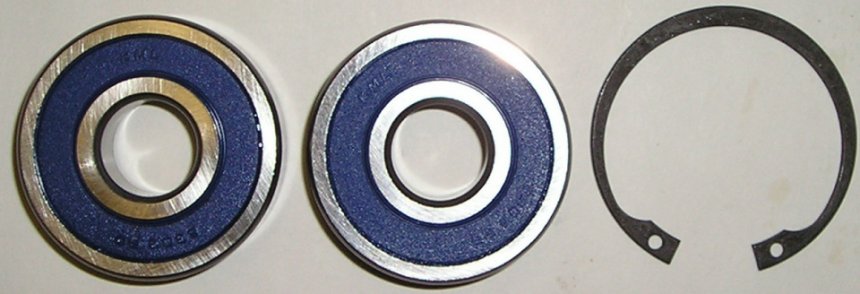

  REAR WHEEL PARTS - CONICAL HUB

    for 1973+ bikes



A- #0625-063-037 -         $10 each

              bearing 6303 (2 required)

B- #52-10-096-000 -        $2 each

               circlip

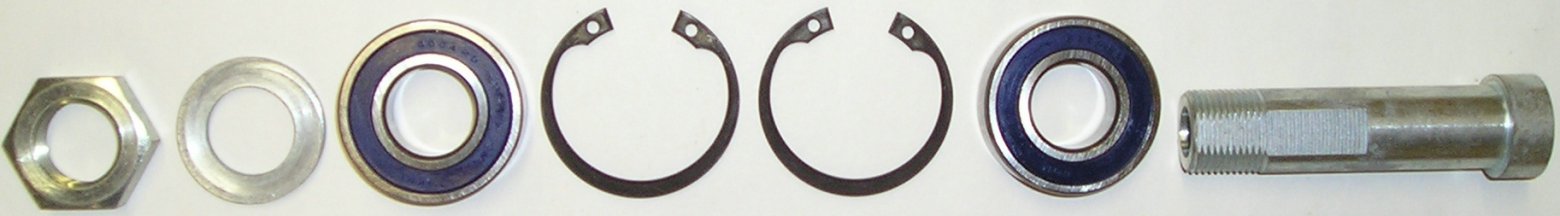

  SMALL CUSH DRIVE SPROCKET CARRIER PARTS

used on all early 1972-73 bikes with small size cush drive rubbers











        A              B                 C                   D                     D                    C                       E



A- #0936-201-503   nut, size M20x1.5 -        $1.90 each

B- #51-10-038-000  flat washer                  $ .80 each

C- #0232-126-001   ball bearing 6004 (2 required)-     $8.40 each

D- #0472-042-175   circlip, 42 mm (2 required)-          $1.75 each

E- #51-10-054-100  sprocket axle - USED                $14.00 each

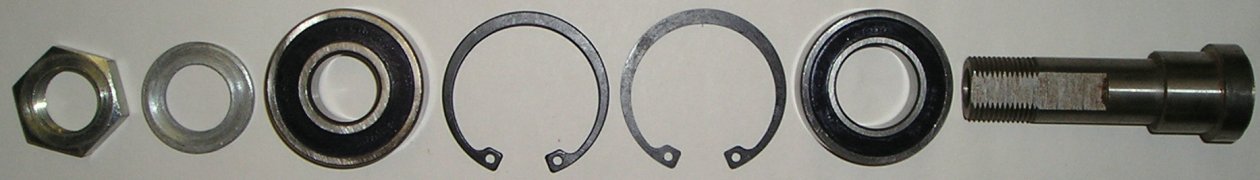

LARGE CUSH DRIVE SPROCKET CARRIER PARTS

used on later 1974-75 bikes with large size cush drive rubbers















         A              B                 C                   D                    D                   E                       F



A- #0936-201-503   nut, size M20x1.5 -       $1.90 each

B- #51-10-038-000  flat washer -              $ .80 each

C- #0625-062-046   ball bearing 6204 (1 required) -     $7 each

D- #1-209-092         circlip 47mm (2 required) -            $1.75 each

E- #0625-060-056    ball bearing 6005 (1 required) -    $9.95 each

F- #51-10-054-300  sprocket axle -                  $16.00 each

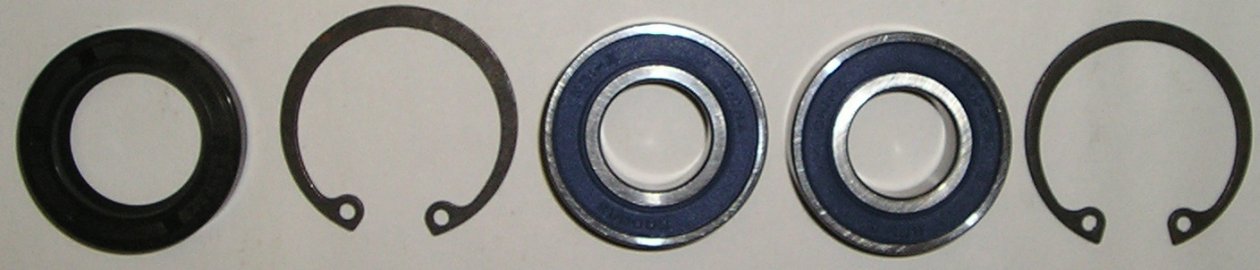

REAR WHEEL PARTS - Straight Hub

for all 1972-73 175cc Penton motorcycles using the straight hub for CUSH drive

















               A                        B                          B                        A                          B                     B



A- #6-16-000          circlip (2 required) -              $2 each

B- #0625-060-036  bearing 6003 (4 required)-    $7.50 each

FRONT WHEEL HUB PARTS

for all 1972+ Penton & KTM motorcycles

















                 A                   B                        C                      C                       B



A- #6-20-000          seal (1 required)-                   $6.50 each

B- #6-16-000           circlip (2 required)-              $2 each

C- #0625-060-036   bearing 6003 (2 required)-    $7.50 each

    also (not shown)  #6-34-000    seal for inside of backing plate -   $8.00 each
