Wheel Parts for 100-125cc

PENTON / KTM motorcycles

SHOES / SPROCKETS / AXLES / BEARINGS / NUTS / CLIPS



(NOTE: parts are available only while supplies last - prices subject to change without notice)

This is a small sampling of the popular items requested for wheel parts.

There are too many items in our inventory to be shown on this web site

and there are many items that are not available or exist in small quantities.

Refer to the Sachs Parts Lists to find the drawing of the part you are in need

of, write down the part number and call for pricing and an inventory check.



Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

or e-mail me  pentonpartsusa@sbcglobal.net

  NOS Painted Front Spokes

         silver grey painted spokes used on 1969-73 100s & 125s

 #51-09-071-000 -  200mm long    $1.50 each

 #51-09-071-100 -  230mm long    $1.00 each

 #51-09-072-000 -  spoke nipples   $1.25 each

 #51-09-072-000 -  S.S. spoke nipples   $1.50 each

   Note: spoke nipples will fit only the painted spokes

  Penton/ KTM Brake Shoes



#31-09-035-000 -      $40 pair
         Ferodo brand front & rear shoes for 1968+ bikes

               includes 1 brake shoe spring (not shown)

A

B

C



D

   Front Backing Plate Parts



 A -    #31-09-031-000 -      $26
            brake cam with taper (includes nut)

 B -    #0934-081-003 -      $ .25 each
            nut

 C -    #51-09-033-000 -     $12 each
            steel brake arm with extension for spring

 D -    #51-10-040-000 -     $4.50 each
            return spring

A

B

C



D

   Rear Backing Plate Parts for straight hub



 A -    #31-09-031-000 -      $26
            brake cam with taper (includes nut)

 B -    #0934-081-003 -      $ .25 each
            nut

 C -    #51-10-033-000 -     sold out
            steel brake arm with extension for spring

 D -    #51-10-040-000 -    $4.50 each
            return spring

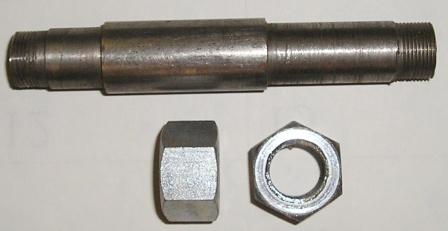

 Steel Tanker Front Hub Spacer Tube



 A -    #6-14-000-000 -      $19 each
            spacer tube - 115mm long



 B -    #6-23-000 - special fat nut   $1.25 each

sprocket

for 1968

Pentons

with

4-hole

sprocket

carrier

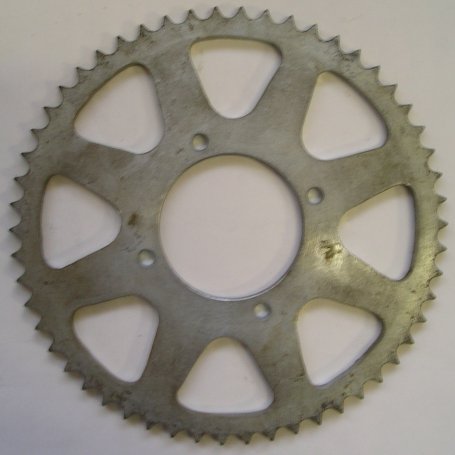

   PENTON  REAR SPROCKET

fits all 1968 steel tank bikes with rectangular lug

cush drive (4-hole) sprocket carriers with 2-7/8" diam

center hole.



#6-52-054 -       $40 each

         54 tooth with 4 bolt hole pattern, steel



#6-54-000  sprocket lock plates -  $5 each


sprocket

for 1969+

Pentons

with

6-hole

sprocket

carrier

   PENTON REAR SPROCKETS

Fits all 1969-1975 125 bikes with round lug cush drive

sprocket carrier with 5-3/4” diam. Center hole.
For size 428 chain - 6 bolt holes
#51-10-051-048 –  48 T  NOS alloy-     $42 ea.
#51-10-051-052 –  52 T New alloy        $68 ea.



#51-10-051-057 –  57 T  New alloy-       $93 ea.
#51-10-051-060 –  60 T  New alloy -      $78 ea.



Also available:

#51-10-052-000  sprocket lock plates -  $ 5 each

#0931-080-353  hex head bolts, 8x35mm -  $ .65 each

#0557-080-003  square nuts, 8mm -  $ .25 each



A   4 lug style



B  small size

C  large size

   CUSH DRIVE RUBBER

 for all Penton motorcycles using rear cush drive



 A- #6-50-000 -               Sold out

          for 1968 bikes with 4 lug cush drive

 B- #51-10-059-000 -       $24 set of 6

           small size cush drive rubber (6 required)

 C- #51-51-10-059-300 -       $24 set of 6

            large size cush drive rubber (taper fit)

            O.D. 34-31mm  I.D. 23.5-21.8mm  H 17mm



A



B

  used CHAIN ADJUSTERS

  for all CMF Penton motorcycles using rear cush drive



 A- #51-10-184-044 -              Sold out

           Right side with spacer for cush drive



 B- #51-10-084-044 -   used            $30 each

           Left side





A

B

C

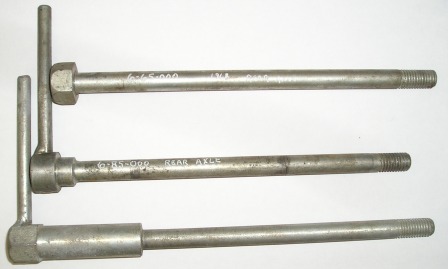

AXLES for Steel Tanker Bikes



A- #6-65-000           $18  each

          straight rear axle for 1968 bikes 8-1/2" long

B- #6-85-000           $23 each

           step down rear axle for 69-71 bikes 8-1/2" long

C- #6-35-000            $24 each

           Front Axle 9-1/2" long

A



B

C

  Sprocket Carrier AXLES for Steel Tanker Bikes



 A- #6-64-000           $10  each

         short sprocket carrier axle  for 1968 4 bolt hub



 B- #6-80-000           $12 each

           sprocket carrier axle for 1969 thru 1971 6 bolt hub



 C - #6-45-000           $1.00 each

           special 16mm nut with fine thread





   A                               B

  REAR AXLE

 for all 1972 thru 1975 CMF bikes using the

 cush drive straight rear hub



 A- #0985-120-003     $ .70 each

           self locking 12mm nut



 B- #51-10-085-000    $46 each

           rear axle

               SMALL CUSH DRIVE SPROCKET CARRIER PARTS

         used on all early 1972-73 bikes with small size cush drive rubbers











        A               B                C                    D                    D                    C                      E



A- #0936-201-503   nut, size M20x1.5 -                       $1.90 each

B- #51-10-038-000  flat washer                                     $ .80 each

C- #0625-060-046   ball bearing 6004 (2 required) -     $8.40 each

D- #0472-042-175   circlip, 42mm (2 required) -           $1.75 each

E- #51-10-054-100  sprocket axle -USED                   $14.00 each

        LARGE CUSH DRIVE SPROCKET CARRIER PARTS

    used on later 1974-75 bikes with large size cush drive rubbers













          A              B                  C                      D                      D                     E                         F



A- #0936-201-503   nut, size M20x1.5 -                        $1.90 each

B- #51-10-038-000  flat washer                                      $ .80 each

C- #0625-062-046   ball bearing 6204 (1 required) -      $7 each

D- #1-209-092        circlip, 47mm (2 required) -            $1.75 each

E- #0625-060-056    ball bearing 6005 (1 required) -      $9.95 each

F- #51-10-054-300  sprocket axle -                             $16.00 each

       REAR WHEEL HUB PARTS

        for all Penton & KTM motorcycles using the straight hub for cush drive















              A                        B                       B                       A                        B                      B



A- #6-16-000           circlip, 35mm (2 required) -         $2 each

B- #0625-060-036   bearing 6003 (4 required) -          $7.50 each

         FRONT WHEEL HUB PARTS

         for all Penton & KTM motorcycles













                 A                        B                      C                   C                    B



A- #6-20-000          seal (1 required) -                     $6.50 each

B- #6-16-000           circlip, 35mm (2 required) -      $2 each

C- #0625-060-036   bearing 6003 (2 required) -      $7.50 each

    also (not shown)  #6-34-000    seal for inside of backing plate -   $8.00 each

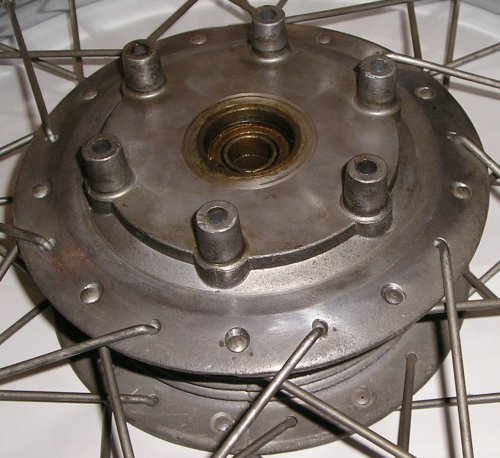

      Photo of Straight Hub

         that uses small size cush drive rubbers
