F

B

             A            C      D               G

A - #51-07-066-400 -       $26 each

          chain block for all bikes

B - #51-07-066-000 -      $21 each

           chain block for 100/ 125 w/428 chain

C - #0931-060-603 -         $ .85 each

            hex bolt, size M6x60 for chain block "A"

       #0931-060-453 -         $ .55 each

            hex bolt, size M6x45 for chain block "B"

D - #0985-060-003 -        $ .20 each

           nylock nut, 6mm

E -  #51-07-071-400 -       Sold out

            outside bracket f/175-250-40

F - #51-07-071-300 -        Sold out

             outside bracket for 125
G - #51-07-070-300 -        Sold out

              inside bracket for all 1973-75 bikes

                     made in USA
All chain guides are remanufactured from heavy gage aluminum

Special Note: 1972 CMF bikes did not have the inside & outside (E & G) brackets. The chain block (B) bolted directly to the chain guard and the extended mounting bracket on the swing arm.

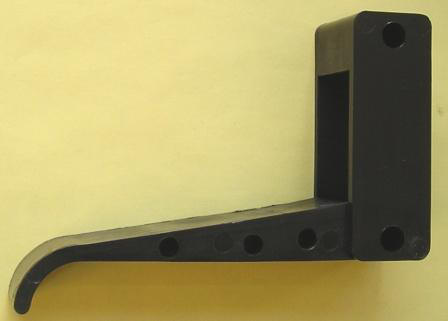

 Upper Chain Guide Block

 Aftermarket part - fits 1977-78 KTM GS-6 motorcycles

  bolts to the front part of the swing arm - fits inside chain guard

 #55-07-067-600 -        $21

 NOTE: extra long tongue may have to be cut (shortened) to fit

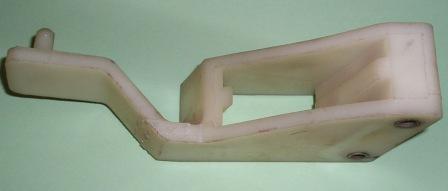

 420 Lower Chain Guide Block

fits 1979-80 KTM 420 motorcycles

 #560-07-066-000 -        $30

A

           B                       C              D

   CHAIN ROLLER KITS

for all 1976-78 Penton motorcycles using chain guide bracket (shown in photo)

 A -  # 55-03-052-544  used bracket assy     Sold out

        used engine spacer bracket with 530 nylon chain roller

 B -  # 55-03-053-044  chain roller kit         $28 each

        chain roller kit (roller, bolt, nut, 2 washers, 2 shims)

           For use with 520 or 530 chain -  Roller is imbedded with 2 ball bearings

 C -  # 55-03-053-100   530 chain roller           $8 each

        NOS nylon chain roller for 530 chain

 D -  # 55-03-053-200   520 chain roller          Sold out

         NOS nylon chain roller for 520 chain

A

B

                       C                 D       E    F   G

  Rear Brake Anchor Rods

A - #54-03-178-used  - bracket assy (sold as is)     $30 each

B - #54-03-178-500  - alloy anchor rod     $28 ea

C - #54-07-070-000  - alloy guide bracket     $12 ea

D - #51-07-066-400  - chain block     $26 ea

E - #54-03-120-000  - reinforcing plate     Sold out

F - #0931-060-553 - 6mm bolt + nut f/chain block   $ .85 each

G - #0963-060-503 - 6mm flat head bolt + nut   $ 1 each

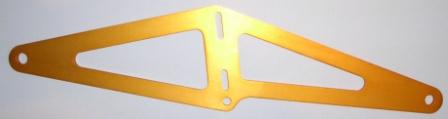

   Carl Cranke Chain Guide Bracket

                       made in USA

   Carl Cranke Chain Guide Bracket

made of gold anodized aluminum

replaces aluminum chain guard & support brackets

fits all 1973 thru 1975 frames using conicle rear wheel hubs.

Chain block bolts directly to bracket

#54-03-178-600  - bracket                         Sold out

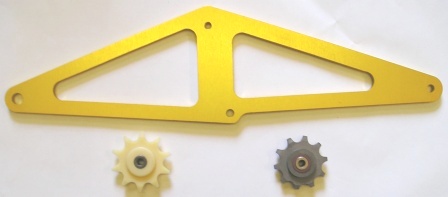

                           A                            B

NOS anodized aluminum bracket (chain tensioner not available)

replaces aluminum chain guard & support brackets

fits all 1973 thru 1975 frames using conicle rear wheel hubs

Can be modified with slots to hold a chain block as Carl Cranke bracket

      #54-03-178-700  -NOS alloy bracket only       $45 each

 A - #54-03-180-000  - NOS nylon sprocket          $10 ea

 B - #54-03-181-100 - replacement steel sprocket   $20 ea

                               has ball bearing insert

made in USA

#51-07-060-000 -         sold out

           chain guard f/all 1972 CMF bikes

remanufactured from heavy gage aluminum

made in USA

#51-07-060-100 -          sold out

           chain guard for 73 250 & 74 bikes

remanufactured from heavy gage aluminum

made in USA

#54-07-060-000  -         sold out

          chain guard for all 1975 bikes

remanufactured from heavy gage aluminum

NOS Chain Guard for GS6

#55-07-060-000  -         sold out

          black plastic chain guard for 1977 &78 GS6 bikes
