51mm long

            made in USA

New Reproduction

RUBBER AIR BOOT

offset  and cocked for plastic Air Box,

51mm (2" ) long to BING carburetor,

for 1981 KTM 250/ 350/ 390 bikes

#55-06-026-500 -         $36 each

          black rubber air boot, 2" long

#51-06-027-000 -          $ 4 each

          small size clamp for Bing carb

#55-06-028-000 -          $ 5 each

          large size clamp for air box

1979-80 KTM  Air Box Diagram

 for reference use only - these items not necessarily available

 1   - #550-06-101-100 Air Box

 15 -  #54-06-015-000  Air Filter

 16 -  #550-06-116-100  Plastic Air Filter Cage

 17 -  #550-06-017-000  Plastic Filter Support

 18  - #550-06-018-000  Support Rod

 19  - #550-06-019-000  Rubber Hook for Support

 26 - #52-06-026-600  Rubber Air Boot for 175/ 250

 27 - #51-06-027-000  small clamp A6 (40-60mm)

 28 - #55-06-028-000  medium clamp (60-80mm)

1979-81 KTM 125/ 420/ 495 Air Box Diagram

 for reference use only - these items not necessarily available

  1   - #560-06-001-000  Air Box

 15 -  #560-06-015-000  Air Filter

 26 -  #560-06-026-000  Rubber Air Boot

 27 - #51-06-027-000  small clamp A6 (40-60mm)

 28 - #51-05-064-000  medium clamp A9 (90-110mm)

 29 - #52-06-029-000  reducing bushing for 125

 33 -  #560-06-033-000  Water Protection

 35 -  #560-06-035-000  Air Box Cover

 50  -  #560-06-050-044  Flange Complete

 52 -  #560-06-052-000  Foam Gasket

 53 -  #560-06-053-000  Circlip size SW90

 54 -  #560-06-054-000  Ring

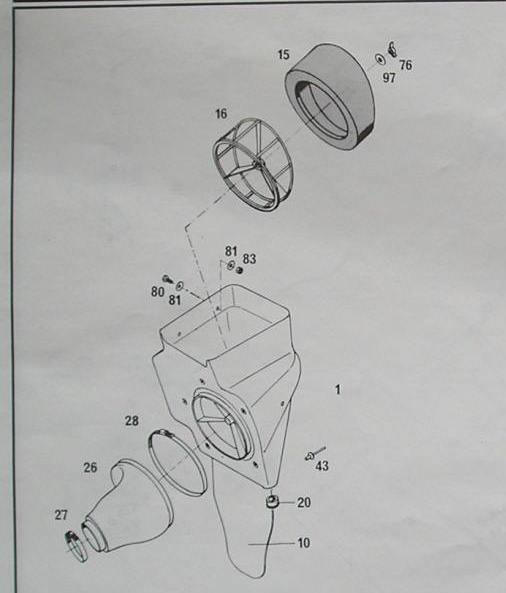

  1982 KTM 250 & 495-MC AIR BOX Diagram

        for reference use only - these items not necessarily available

 1   - #542-06-001-044  Air Box

 10 -  #542-06-010-000  Mud flap

 15 -  #542-06-015-000  Air Filter

 16 -  #542-06-016-000  Frame for air filter

 20 -  #542-06-020-000  Plug

 26 -  #420-06-026-000  Air Boot

 27 - #51-06-027-000  small clamp A6 (40-60mm)

 28  -  #542-06-028-000  Large Clamp B11

 76 -  #560-03-076-000  M6 self locking wing nut

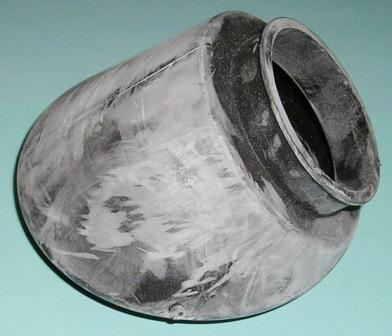

fits to bottom of plastic air box to Bing Carb

for 1979 KTM 420

      1980 KTM 125 & 420

      1981 KTM 125 / 420 / 495

#560-06-026-000 -      $49 each

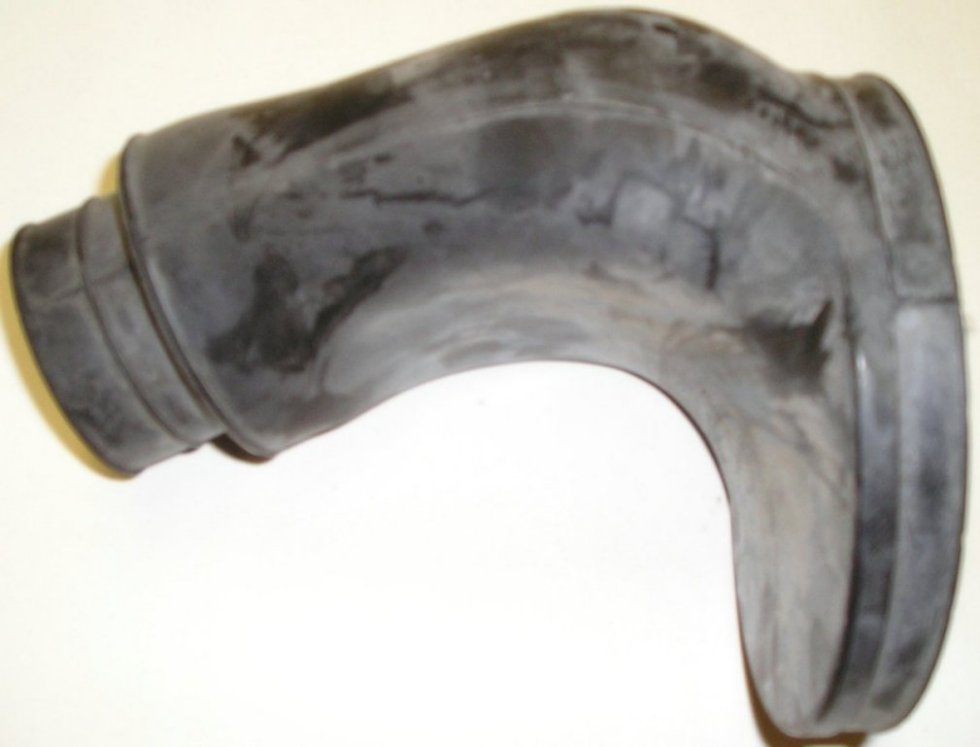

for 1982-83 KTM 250/ 420/ 495

#542-06-026-000 -      sold out

      air boot as shown

#542-06-028-000  -    $8 each

      large clamp B11 (not shown0

51mm long

fits  air box to Bing Carb

     1983 250 mx

     1984 250 mx-mxc-gs

#543-06-026-000 -        $36 each

  NOTE: this item can be used as a substitute

         for the #581-06-026-000 air boot

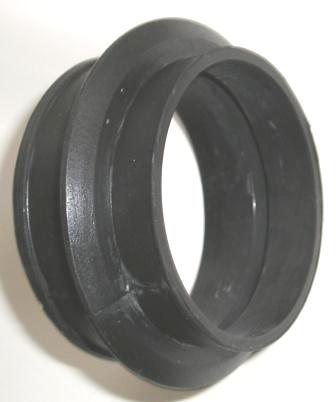

 for air box tube to Bing Carb

Fits the following:

  1984-92   125s

  1986        80 MX pro-mini

  1986        240, 250, 300, 350

#501-06-026-000 -      $36 each

A

medium size

B

small size

A - #55-06-028-000 -          $ 5 each

          medium size (60-80mm) clamp for air box

A - #51-05-064-000 -          $ 5 each

          medium size A9 (90-110mm) clamp for air box

B - #51-06-027-000 -          $ 4 each

          small size A6 (40-60mm) clamp for Bing carb

canister shaped foam filter for

    1979 KTM 420,

    1980 KTM 125/ 420

    1981 KTM 125/ 420 / 495.

For plastic air box with threaded centering rod and air boot at bottom of box.

#560-06-015-000 -        $28 each

                          made in USA

the slanted, round, cage shown on left

#543-06-015-000 -        $28 each

NOTE: cage not included and not available
