Sprocket for

Conical

KTM rear hub

6.5" I.D.

125 MXC 1984-86

MX/DXC/EXC 87-96

250/420/495 84-89

350 Enduro/MX 89

500 MX  1988-92

540 DXC  90-91

600 LC4 Enduro/MX  1989

  520 SPROCKETS for 1984+ KTM's

 with 6 (8mm counter sunk) bolt holes,

 measures 6-1/2" I.D. (166mm)

#543-10-051-048 -  48T    $62 each (alloy)

#543-10-051-049 -  49T    $65 each (alloy)

#543-10-051-050 -  50T    $68 each (alloy)

#543-10-051-051 -  51T    $70 each (alloy)

#543-10-051-052 -  52T     $74 each (alloy)

#543-10-051-054 -  54T    $79 each (alloy)

Sprocket for

Conical

KTM rear hub

4-7/8" I.D.

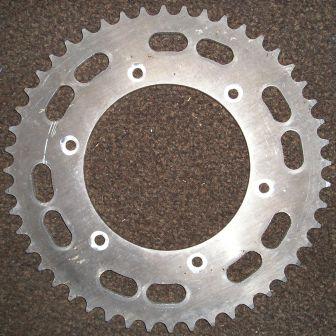

  520 SPROCKETS for 1990+ KTM's

 with 6 (8mm counter sunk) bolt holes,

 measures 4-7/8" I.D. (125mm)

#546-10-051-045 -  45T    $60 each (alloy)

#546-10-051-048 -  48T    $62 each (alloy)

#546-10-051-050 -  50T    $68 each (alloy)

#546-10-051-052 -  52T    $60 each (alloy) - Used

B

C

D

E

        chrome plated spokes used on 1981+ KTM bikes

A  #510-09-171-600 -  230mm long inner    $2 each

      Front straight shank spokes 4mm diam thread

B  #510-10-071-600 -  205mm long outer    $2 each

      Rear straight shank spokes 4mm diam thread

C  #510-09-171-600 -  192mm long inner    $2 each

      Rear straight shank spokes 4mm diam thread

D  #542-09-071-000 -  240mm long outer    $2 each

      Front straight shank spokes 4mm diam thread

E  #542-09-171-000 -  240mm long inner    $2 each

      Front straight shank spokes 4mm diam thread

   #510-09-072-600 -  nipples    $2.25 each

      nipple for 4mm diam threaded spokes

A

B

C

D

E

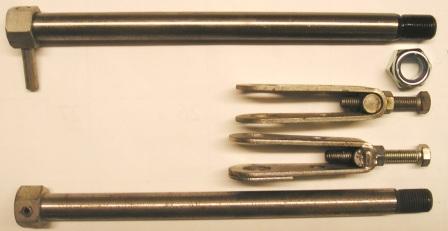

   REAR AXLE

for all 1979 thru 1983 MC/ GS 80 bikes using the conicle rear hub

 A- #550-10-085-000    $58 each

           rear axle for GS 245 mm long

 B- #0985-161-503     $1.25 each

           16mm nut for rear axle

 C- #550-10-084-000     $15 each

           chain ajuster left side

 D- #550-10-184-used     $15 each

           chain ajuster right side with bushing plate

 E- #550-10-185-000    $58 each

           rear axle for MC 245 mm long

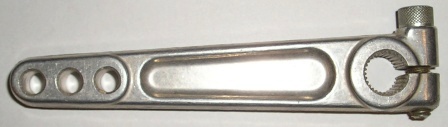

NOS FRONT BRAKE ARM

 alloy brake arm for front hub - 4" long from end to center hole

for 1979 to 1982 KTM bikes

#550-09-033-000    $48 each

 B

 C

 D

 E

 F

 Brake Arms for 1975-83 Penton & KTMs

for conicle hub backing plates

 A - #52-10-031-300 -        $26 ea

       cam with straight spline, 12mm shaft

 B - #52-10-033-400 -        $30 ea

        steel brake arm, flat style, w/ straight spline, open fingers

 C - #52-10-033-500 -        $30 ea

       steel brake arm, bent style, w/ straight spline, open fingers

 D - #52-10-033-700 -        $30 ea

       steel brake arm, bent style, w/ straight spline, closed fingers

 E - #52-10-033-800 -        $32 ea

       steel brake arm, straight style, w/ straight spline, closed fingers

 F - #52-10-033-600 -        $46 ea

       alloy brake arm, straight style, w/ straight spline, closed fingers

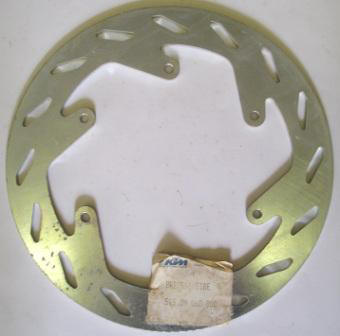

  new old stock 260mm O.D.

#565-09-060-800 -         $118 each

  new old stock 240mm O.D.

#565-09-060-800 -         $98 each

#542-09-035-000 -        $45 pair

 Ferodo brake shoes

brake shoes for 83-250
and all 1984-85 KTM motorcycles that use

a double-linked brake cams

#543-09-035-000 -        $45 pair

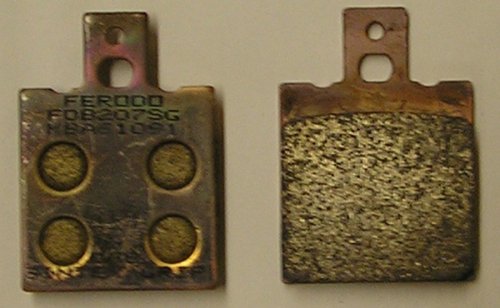

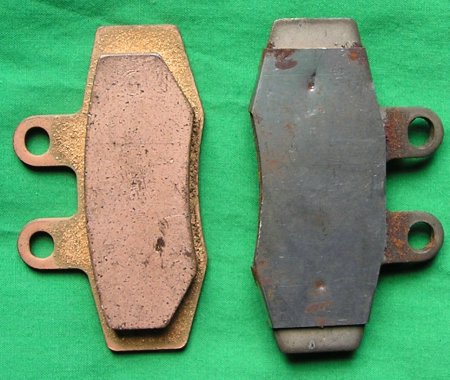

Ferodo sintered disc brake pads

for 1985-86 KTMs using Grimeco calipers

#565-13-209-000 -      $30

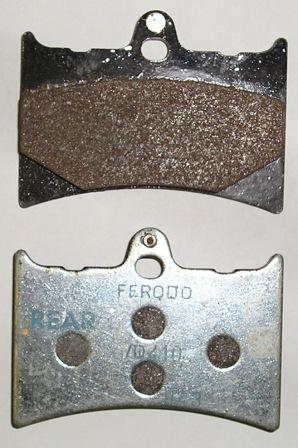

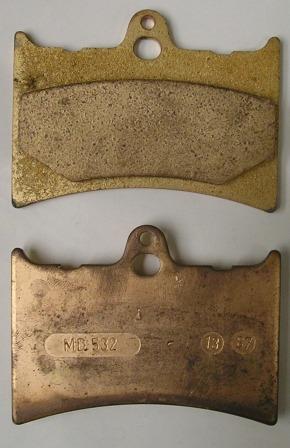

Ferodo sintered disc brake pads

for  KTMs

#502-13-209-044 -         $14 pair

#502-13-309-044 -          $28 pair

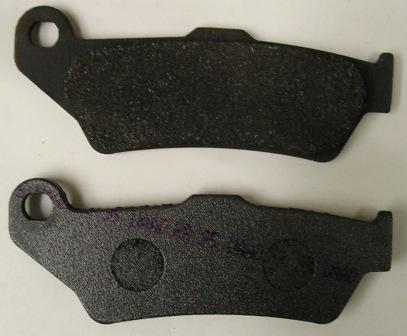

Carbon brake pads for "Brembo" calipers

used on 2001-2003 KTMs

#503-13-030-000 -      $24 pair
