AIR BOX PARTS

for 100-125cc

PENTON / KTM motorcycles

AIR BOX / AIR FILTERS / AIR FILTER CAGES / AIR FILTER OIL



  Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

  or e-mail us a list of your quantities and part numbers pentonpartsusa@sbcglobal.net





(NOTE: parts are available only while supplies last - prices subject to change without notice)

              A                     B   C

                    made in USA

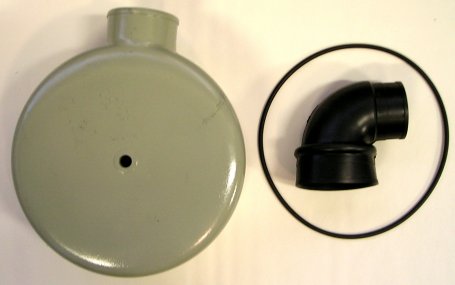

STEEL TANKER AIR BOX COVER

NEW reproduction plastic that is stronger than the original covers.

Provides an air-tight fit to the air filter housing.

For 1969-71Penton bikes with high breather frame also Monark bikes

Air boot fits on snorkel tube of air box cover to tube on frame.

A - #5-62-001  -     $68 each

              Enduro air box cover
B - #5-67-000 -       $1 each

              O-ring – seals rim of air box
C - #5-69-000  -     $40 each

               Rubber air boot

       #5-70-000  -     $4.50 each

               small clamp for air boot

        #51-06-027-000   - $4.50 each

               medium clamp for air boot

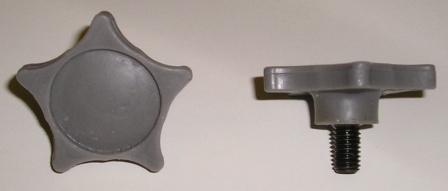

PENTON KNOB for 1968 AIR BOX COVER

reproduction fits all 1968 bikes with alloy air box cover

#5-45-000 -       $14 each             made in USA

 Used Air Box Covers

  full alloy covers with extended number plate

 used cover may be bent to fit over lay down shocks and or may be cracked

 or have worn mounting holes. Alloy cover can be straightened and heliarc welded.

 All used covers need painting.



  #51-06-041-used                      - $80 each

      NOTE: limited quantities available only while supply lasts

              Cover shown in photo is for reference only - not what will be shipped.

 Used Air Box Covers

  alloy covers - extended number plate cut off

 used cover may be cracked or have worn mounting holes.

 Alloy cover can be straightened and heliarc welded.

 All used covers need painting.



  #51-06-041-cut                      - $40 each

      NOTE: limited quantities available only while supply lasts

             Cover shown in photo is for reference only - not what will be shipped.

PENTON AIR BOX BOOT

fits all 1972-76 bikes with fiberglass air box to Bing Carb

dimensions - aprox 4-1/2" long / aprox 4-1/2" I.D. for air box / aprox 2" I.D. for carb



#51-06-026-200 -         $48 each       made in USA

  also - not shown

#51-06-029-000 - 27mm Bing rubber adapter  - $9 each





A

large size





B

small size

CLAMPS FOR PENTON AIR BOOT



A - #51-06-028-000 -          $ 7 each

          large size clamp for air box

B - #51-06-027-000 -          $ 4.50 each

          small size clamp for Bing carb











           A                      B                     C

Bing Air Box Adapters

   fit onto the intake side of carb to fit securely to the Penton air box boot #51-06-026-200



A- #51-06-029-000 - for 24 to 27mm Bings - $10 each

        rubber adapter for Sachs 100 &125s  / 2" O.D. x 40mm I.D.



B- #52-06-029-000 - for 28 to 32mm Bings - $10 each

        rubber adapter for KTM 175s  / 2" O.D. x 43mm I.D.



C- #51-06-029-600 - for 28 to 32mm Bings - $10 each

        Plastic adapter for 1976-77 KTM 125s - offset to fit air boots to  MC5 & GS6 alloy air boxes

No-Toil 2 Stage Air Filter



#5-66-000 -          $28 each
              air filter for 1968-71
              round air boxes      made in USA


No-Toil 2 Stage Air Filter



#54-06-015-000 -      $28 each
       for 1972-75  w/ fiberglass air boxes - fits oval shaped cage


                         made in USA

Have a question about which part is right for your bike?

Are you ready to place an order?



Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

e-mail  pentonpartsusa@sbcglobal.net

or Fax us a list of your quantities and part numbers: 216-651-1620
