FRAME PARTS

for 100-125cc

PENTON / KTM motorcycles

Brake Rod / Pipe Mount / Footpegs / Side Stand / Tool Bag & Rack

Steering Races / Fork Bumpers / Shocks / Number Plates



  Call: Al Buehner - (216) 651-6559   Mon-Fri    8:30am to 4pm E.S.T.

  or e-mail us a list of your quantities and part numbers pentonpartsusa@sbcglobal.net





(NOTE: parts are available only while supplies last - prices subject to change without notice)

BRAKE ROD PARTS for all straight hub 1972-73  Penton motorcycles



A



B















         C                 D                              E                  F           G        F                     H            I



A- # 6-1-000            brake rod for 1968-71 bikes (20" long)  -  Sold out

B - #51-03-070-000  brake rod for 1972-75 bikes (21.5" long) - Sold out

C - # 6-9-000            adjustment wing nut for brake rods -  $5 each
D -
#32-03-073-000  pressure spring for brake rods (6.5mm I.D. x 108mm L) -  $3 each
E -
#51-03-066-100  R/S outer nylon bushing  -    $14 each
F -
#51-03-067-000  nylon bushing f/spring  -      $13 each
G -
#51-03-062-000   chrome return spring  -       $6 each
H - #51-03-061-100   L/S outer nylon bushing  -   $14 each

 I - #51-03-063-044   actuating arm  -                   $12 each                           made in USA

  used Brake Pedals



   for 1972-75 Penton 100 & 125 bikes with cush drive rear wheels



#51-03-060-USED - used pedal   $40 each

Rubber pipe mount assembly



#51-05-062-000 -       $16 each
       complete with washers, self lock nut, and bolt


  USED Rear Brake Anchor Rod

 for 1972-75  CMF 125s

  may have rust and require painting



#51-03-078-USED -    anchor rod   $23 each

  new 1972 Side Stand Bushings

 for 1972 Penton side stand that mounts under the swing arm

#10-03-041-000 -  nylon bushing    $ 10 each

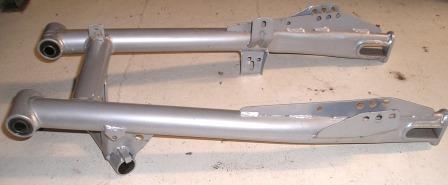

 Used 1972 Penton 125 Swing Arm

   new bushings, powder coated, like new

   has lower side stand bracket (no nylon bushings)

  #52-03-030-used -       $300 each

    NOTE: only 1 in stock

  1973 used Swing Arm

    for all 100 & 125 CMF frames 1972-1975

    need painting + new bushings



  #51-03-030-used -         $150 each

   NOTE: side stand brackets missing



  A

B

Reproduction

     Swing Arm Bushings

    for all 100 & 125 CMF frames 1972-1975



 A- #51-03-031-000 -   steel      sold out and unavailable

     original design with inner and outer sleeve and rubber insert





 B- #51-03-031-100 -  white nylon    -   $20 each

     new design replacement bushings made of nylon



Reproduction
 Swing Arm Bolt

Fits all 1972-1980 bikes. Redesigned cap that is extra long and slotted to fit 12mm open end wrench for installing and removing.

 - #51-03-033-000 -         $70 each

   New Old Stock

  Left side foot peg

  #51-03-040-000  - left side       $19 each

        new zinc plated with dimple grips



      NOTE: right side foot pegs not available

  made in USA

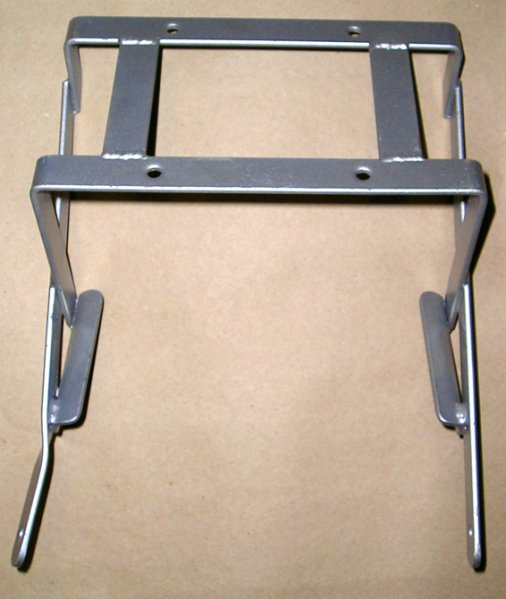

New – reproduction
TOOL BAG RACK
for 1972-76 PENTON motorcycles


#51-11-059-000 -        sold out
        Tool bag rack for CMF frames,
         painted silver grey

made in USA

New – reproduction
LEATHER TOOL BAG
for PENTON motorcycles - fits Tool Bag Rack



#51-11-060-000 -            $82 each
   approximate size 8-1/4" wide x 6" deep x 5" high

            A              B               C

New reproduction
Steering Head Race kit

#51-01-086-044  -  only $60 each
           includes: 2 inner races, 2 outer races,

                     34 balls, & 2 viton O-rings
also available separately:
A- #51-01-083-000  -           $20 each

           inner race (for steering head)

     43mm O.D. x 26.5mm I.D. x 5.25mm thick
B- #51-01-085-000         -    $20 each

           outer race (for fork plate & bushing)

     43mm O.D. x 26.5mm I.D. x 5.25mm thick
C- #2-52-100  -                     $2 each

            Viton O-ring

New reproduction Fork Bumpers
for all Penton motorcycles.



# 51-03-090-000 -            $8 each

                         made in USA

Reproduction Rubber Buttons



Fit into frame holes to cushion the gas tanks

 - #51-07-069-100-        $5.00 each



A



B



C

D

RUBBER WASHERS

used under steel washers throughout bike to protect

plastic and painted parts



#51-05-082-100  -           $ .25 each or

                                $9.00 per pack/50



B  #0021-060-000-P -           $ .20 each

         flat washers         $3.00 per pk/50



C  #0985-060-003-P -           $ .20 each

      6mm  nylock nuts     $4.00 pk/50



D  #0933-060-203-P  -         $ .25 each

      6 x 20mm bolts        $4.00 pk/25



REAR SHOCKS

13” E to E shock for show bikes or easy riding.

      Not for competition use.



#51-04-010-200 -            Only $104 pair
         Includes 4 bolts, nuts, and bushings.

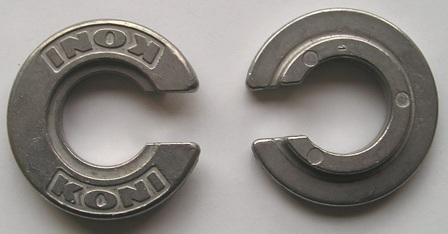

 Koni Spring Retainer Clips

  used clips for Koni shocks



#51-04-012-200 -            Only $8 each



 Chrome Spring Washers

  NOS washers for shocks



#51-04-014-200 -            Only $5 each



 Head Light Plastic Number Plates

size - aprox. 9" (230mm) x 11" (280mm)

   all have raised rounded edge on front side

#55-01-090-500   Yellow -      $8 each


#55-01-090-600    White -       $8 each



Plastic Oval Number Plates

size - aprox. 9" (230mm) x 11" (280mm)



   #55-01-090-100   Yellow -      $5 each   or

                                3 for $15

   #55-01-090-200    White -       $5 each   or

                               3 for $15

   #55-01-090-300    Green -       $5 each   or

                               3 for $15

   #55-01-090-400    Red -       $5 each   or

                               3 for $15

       Black Oval -   Sold out



Plastic Rectangular Number Plates

 small size - aprox. 10"  x 7-1/4"



   #55-01-090-021   Yellow -      $5 each



   #55-01-090-022   White -      $5 each



   #55-01-090-023    Green -       $5 each



   #55-01-090-024    Red -       $5 each



   #55-01-090-025    Black -     $5 each



Plastic Rectangular Number Plates

 large size - aprox. 12"  x 10"



   #55-01-090-031   Yellow -      $7 each



   #55-01-090-032    white -       $7 each



   #55-01-090-033    Green -       $7 each





A



B





                   C        D

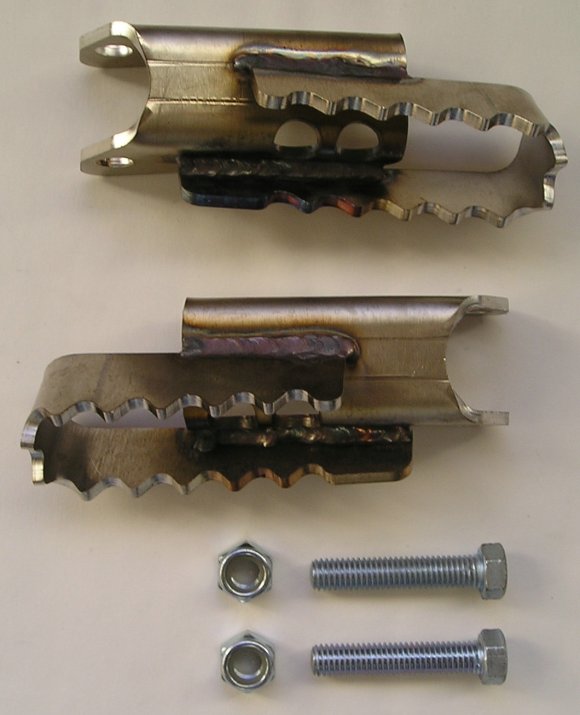

Reproduction Stainless Steel

  FOOT PEGS

  for all CMF frames 1972-1975

  New style with serrated tops to grip boots



A - #51-03-040-200 -          sold out
            Foot peg, left side
B - #51-03-140-200 -           sold out
             Foot peg, right side
C - #0985-080-003 -           $ .20 each
             nylock nut for bolt
D - #0931-080-403 -           $ .65 each
              mounting bolt                   made in USA

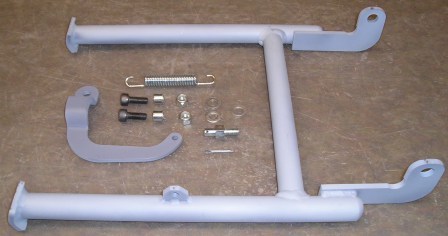

Reproduction

  Center Stand Kit



  for all 1972-75 Penton 100 and 125s with Sachs engines

  kit includes all mounting hardware -

  mounts to holes in CMF frame next to foot pegs

- #51-03-023-500 -    $220 each

    used Side Stand

 for 1973-74 CMF frames, may have rust and require painting



#51-03-023-used -  side stand      sold out



#31-03-021-000 -  spring   $ 12 each

        stainless steel spring 4-3/4" long for side stand

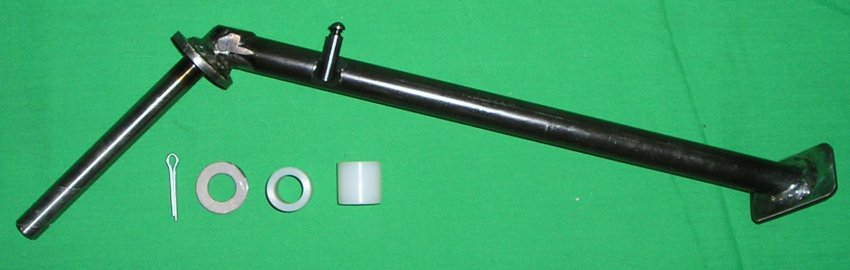

   Reproduction
 1972 Penton SIDE STAND

Fits all 1972 CMF frames for 100/125/175 bikes with a mounting

tube attached under the swing arm.
Quality constructed to the same radius as the original.
Price includes 2 nylon bushings, steel washer, spring (not shown)

and cotter pin. (unpainted)

#51-03-023-000 -         sold out



#10-03-041-000 -  nylon bushing    $ 10 each
