made in USA

New reproduction

Fork Bumpers
for all Penton & KTM motorcycles.

# 51-03-090-000 -            $8 each

photo showing positioning of label on fork leg

C's sherry Fork Decals

       size 7/8" x 2-1/4"

#1-00230 - black printing on clear background     $5 pair

      also available (not shown)

#1-00311 - white printing for shocks   $5 pair

NOTE: labels should be trimmed on top, bottom, and sides before installing.

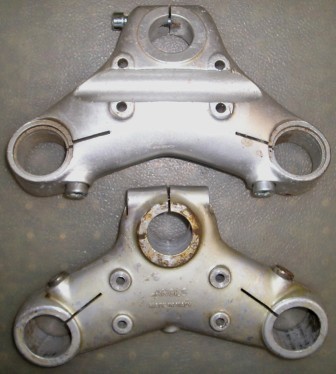

C's sherry 35mm Fork Plates

       1968 - 1971 size 35mm triple trees

       used on Penton steel tank bikes - 1968 thru 71

  measure 6-5/8" (167mm) center to center

#2-56-000 - new 35mm top plate    $90 ea

 2-56-000-used - used top plate    $60 ea

 2-55-000-used  used bottom plate  $60 ea

  C's sherry 32mm Fork Plates

       1972-73 size 32mm triple trees

       used on Penton CMF bikes from 1972 thru 73

   measure 6-5/8" (167mm) center to center

#1-627-011 - new 32mm top plate    $90 ea

 1-627-011-used - used top plate    $60 ea

 1-627-041 -  new 32mm bottom plate  $90 ea

 1-627-041-used  used bottom plate $60 ea

  C's sherry 35mm Fork Plates

       1974-75 size 35mm triple trees

       used on Penton CMF bikes from 1974 thru 75

   measure 6-5/8" (167mm) center to center

#1-672-031 - new 32mm top plate    $90 ea

 1-672-031-used - used top plate    $60 ea

 1-622-011 -  new 35mm  bottom plate  $90 ea

 1-622-011-used  used bottom plate   $60 ea

                 A                     B                   C

Reproduction C's FORK BOOTS

A - #1-48-000 -                $40 pair
          .   (1969-71) 35mm, black
B - # 1-503-093 -              $36 pair
                (1972-73) 32mm boot, black
C - #1-637-09 -                 $38 pair
                 35mm boot, black              made in USA

New reproduction

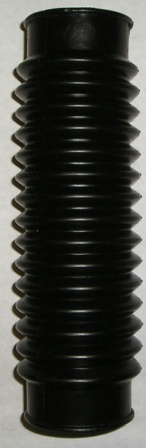

FORK GAITERS

FOR sherry C's FORKS

used on 1968 Penton motorcycles

                         made in USA

#1-28-000  fork gaiters  -   sold out

                       A                              B

FORK SEALS for sherry C's

A - #1-503-091 -           $7 each
             32mm x 7 double lip seal
B - #1-265-0514 -         $8 each
             35mm x 7 double lip seal
NOTE: C's forks use 2 seals per fork leg

 Wassel FORK SEALS

  for Metal Profile forks

- #WAS-01-3245   -           $7.50 each

             32mm x 7 double lip seal

reproduction Fork Brace

 for  32mm Ceriani forks - painted grey

#51-01-060-000  -      Sold out

Original Wassel built

Wassel Trials Front Fender Bracket

 mirror finished aluminum bracket with 2 rubber center mounts

 #WAS-08-011               $38 each

                      made in USA

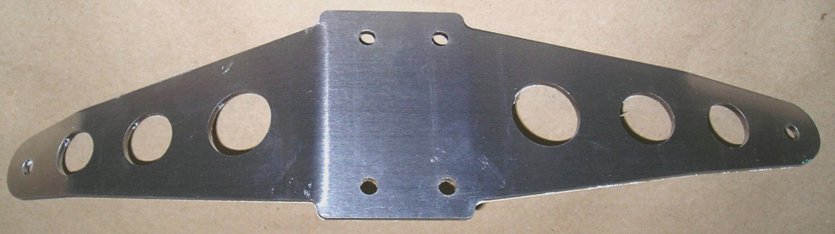

ALUMINUM FENDER BRACKET

bracket used on 1972 Pentons with aluminum front fenders.

Bracket bolts up under bottom of 32mm triple tree.

Two mounting holes on end of bracket are used to bolt the front fender.
#51-08-011-000 -      Sold out

                                                          made in USA

USEd  Front Fender Bracket
used steel bracket fits all 1974 to 1976 bikes with 35mm sherry C forks. Spaces plastic front fender for proper positioning. Extension has a hole to hold front brake cable.

 #54-08-018-000 -        Sold out

 Head Light brackets

 for Ceriani forks - Alloy

#1-503-11  - for 32mm forks    $76 pair

#1-31-000  - for 35mm forks    $80 pair

   NOTE: limited quantities available only while supplies last

                 When new old stock runs out - used parts will be sent.

NUMBER PLATE BRACKETS

For mounting front number plate to front forks.

Bracket snaps onto front fork tubes and is held

in place with large rubber band (included). Made of stainless steel to prevent rusting.

#51-01-087-000 -              $20 each
       32mm size bracket  -  fits forks with 5-3/8" gap between tubes
#51-01-087-100 -              $20 each
       35mm size bracket -   fits forks with 5-1/4" gap between tubes
#51-01-088-000 -              $1.50 each
        extra rubber band

Plastic Oval Number Plates

size - aprox. 9" (230mm) x 11" (280mm)

   #55-01-090-100   Yellow -      $5 each   or

                                3 for $15

   #55-01-090-200    White -       $5 each   or

                               3 for $15

   #55-01-090-300    Green -       $5 each   or

                               3 for $15

   #55-01-090-400    Red -       $5 each   or

                               3 for $15

    Black Oval -    Sold out

Head Light Plastic Number Plates

size - aprox. 9" (230mm) x 11" (280mm)

   all have raised rounded edge on front side

#55-01-090-500   Yellow -      $8 each


#55-01-090-600    White -       $8 each

A

B

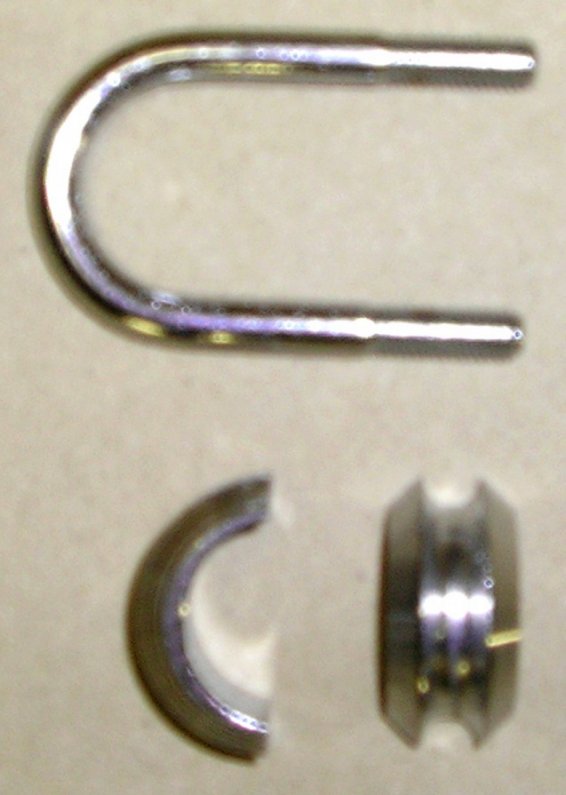

HANDLEBAR CLAMPS

FOR 1968-71 C's TOP FORK PLATES

A - #2-4-000  -          $3 each
             chrome U-bolt
B - #2-3-000 -             sold out

              saddle clamp

Handlebar Clamps

#1-627-012 -        sold out

         for 35mm sherry C forks

         holes measure 30mm c to c

also available:

 #1-627-013  -    $ .90 each

                75mm handlebar bolt for 32mm forks

 #0931-060-603  -   $ .85 each

                60mm handlebar bolt for 35mm fork

 #0985-060-003  -    $ .20 each

                 6mm nylock nuts

A

B

C

D

E

  Bolts for Ceriani Forks

     Handlebar clamp bolts

A - 0931-060-603  -   $ .90 each

         hex head bolt 6 x 60mm

B - 0931-060-753   -   $ .90 each

          hex head bolt 6 x 75mm

     Other bolts

C - 0912-080-303  -   $ .40 each

         allen head bolt 8 x 30mm

D - 0912-080-353        -   $ .65 each

          allen head bolt 8 x 35mm

E - 0931-080-603        -   $ 1.75 each

          hex head pinch bolt 8 x 60mm for lower leg axle

          A                  B                   C

New reproduction
   Steering Head Race kit

#51-01-086-044  -  only $60 each
           includes: 2 inner races, 2 outer races,

                     34 balls, & 2 viton O-rings
also available separately:
A- #51-01-083-000  -           $20 each

           inner race (for steering head)

     43mm O.D. x 26.5mm I.D. x 5.25mm thick
B- #51-01-085-000         -    $20 each

           outer race (for fork plate & bushing)

     43mm O.D. x 26.5mm I.D. x 5.25mm thick
C- #2-52-100  -                     $2 each

A

B

C

D

  RUBBER WASHERS

used under steel washers throughout bike to protect

plastic and painted parts

#51-05-082-100  -           $ .20 each or

                                $9.00 per pack/50

B  #0021-060-000-P -           $ .20 each

         flat washers         $3.00 per pk/50

C  #0985-060-003-P -           $ .20 each

      6mm  nylock nuts     $4.00 pk/50

D  #0933-060-203-P  -         $ .25 each

      6 x 20mm bolts        $4.00 pk/25

    C's Steering Stem threaded bushing

            Holds outer steering race.

#2-48-000 -      $10 each

    31mm O.D. for 1968-71 35mm (short) Ceriani's.

#1-623-042 -     sold out

    30mm O.D. for 1972+ 32 & 35mm Ceriani's

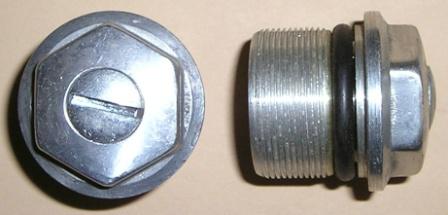

    C's 32mm Fork Tube Nut Assy.

Nut assy. includes: O-ring, ball, valve spring, & tapered head screw.

 #1-503-021        sold out

  #1-503-027 -    $0.60 each

             replacement o-rings for 32mm nut

A

B

C

D

    C's Fork Cap Parts

A- #1-240-022 -    $1 each

           cap screw

B- #1-240-023 -     $1.75 each

           valve spring

C- #1-88-043 -        $ .20 each

             ball

      #1-503-027 -    $0.60 each

             replacement o-rings for 32mm

      #1-209-022 -    $0.60 each

             replacement o-rings for 35mm

D - #1-209-023 -        sold out

            spacer washers for 35mm fork caps

B

  C's Valve & Springs

A- #1-209-0610 -     sold out

           stop valve

B- #1-209-0612 -     $3 pack (2)

           replacement spring washers

  Valve Rebuild Kit for 35mm C's

for 35mm forks (1975-76)

used in lower part of dampening rod

#1-844-065 -        $13.50 each

      A                  B

  C's Oil Drain Screws

A- #0250-112-100 -      $ .40 each

             copper sealing ring

B- #1-88-0511 -            $ .50 each

              drain screw
