Bosch brand plugs

  for Penton and KTM engines

 #BOS - W3AC  -  (W260 T16)   1/2" reach    sold out

      equivelent to NGK B8-HS

  Bosch resistor long reach spark plug

  Puch part number 903.0753   (29863)

 #BOS - W310 R17 3/4" reach for PUCH   $6 each

  complete stator plate lighting and ignition windings

   points, conderser and wiring

#0283-105-018  NOS stator assy  -         sold out

#0283-105-018- USED  - stator assy         $75

         front side

        back side

   brand new with magnets intact

#0283-108-018  Flywheel  -          sold out

PVL IGNITIONS

internal flywheel gives instant rpm.

kit includes:
internal flywheel, coil, armature, mounting hardware, & flywheel puller.


#99-PVL-70051 –    sold out  - to order call Dan Grey 440-989-4474
       for 1968-75 Sachs 100 & 125cc motors

#99-PVL-70060 –      sold out  - to order call Dan Grey 440-989-4474
        for 1972-79 KTM 125, 175, 250, 400 motors

#99-PVL-70505 –          $78 each

       Optional PVL rotor weight (22 ounces)

       bolts to internal flywheel

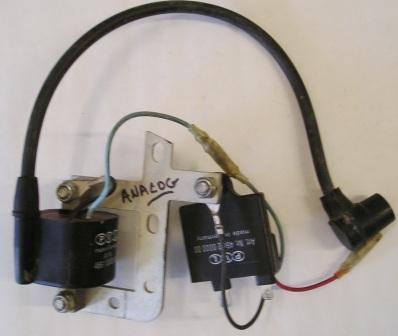

Analog coil for PVL ignition and separate CDI unit

mounted on bracket

#99-PVL-70905 –          $125 each

POWERDYNAMO IGNITIONS

Weighted flywheel provides ignition and 12v lighting

that works even when engine is idling - all are AC units (for use without a battery)

Kits come complete with all parts shown & instructions

#99-MZB-40350 -            sold out  - to order call Dan Grey 440-989-4474
       for 1968-75 Sachs 100 & 125cc motors

#99-MZB-40360 -          sold out  - to order call Dan Grey 440-989-4474
        for 1972-79 KTM 125, 175, 250, 400 motors

#99-MZB-40387 -      sale      $425   only 3 left in stock
        for 1990-98  KTM 250/350 with 90mm mounting plate

#99-MZB-40389 -       sale     $425   only 1 left in stock
        for 1987-89 KTM 250 with 110mm mounting plate

#99-MZB-70082 -       sale     $425   only 1 left in stock
        for BSA model B40

 used Motoplat External Flywheel and Stators

used stator and flywheel - for use with red wire Motoplat  coil or reproduction PVL Motoplat coil #70900.

#99-KTM external Motoplat  -          $180

   tested OK - has low spark

   for 1972-80 KTM  125/ 175/ 250/ 400 engines

#51-31-009-used   external flywheel only  $40

   external flywheel for 1972-80 KTM  125/ 175/ 250/ 400 engines

#0683-007-used    external flywheel only  $40

    external flywheel for 1969-75 Sachs 100 / 125 engines

#51-31-003-000  -          $6

     used Motoplat mounting plate (not shown)

#51-31-003-000 -     $6 each

           Magneto puller for Bosch and

           Motoplat  external flywheels

#0276-150-005 -     $27

  26mm medium threads

  external Motoplat flywheel shown above

  used Motoplat red wire Coils

   for use with all Motoplat stators

   price includes new Sparkie plug cap

#99- Motoplat red wire Coil -   Sold out

Motoplat Internal Flywheel and Stator

New Old Stock stator and flywheel - for use with red wire Motoplat  coil or reproduction PVL Motoplat coil #70900.

#99-Sachs internal Motoplat  -           Sold out

  tested OK - has high spark

   for 1968-75 Sachs 100 & 125 engines

#99-KTM internal Motoplat  -          $150

   tested OK - has low spark

   for KTM 1972-80  125/ 175/ 250/ 400 engines

           Magneto puller for

           Motoplat  internal flywheels

#0276-150-100 -     $27 ea

  27mm fine threads

  internal Motoplat flywheel shown in photo

Reproduction by PVL

Motoplat Coil

for Motoplat ignitions requiring diode in coil

(replacement for red spark plug wire coil)

 #99-PVL-70900-      sold out  - to order call Dan Grey 440-989-4474

n.o.s. Selettre Coil

for KTM 50cc  ignitions 1998+ Pro Jr./ Senior

 #450-39-006-000-     $90 each

made in USA

soft rubber cap with coiled steel spark plug connector

#51-31-010-100 -      $3 each

  A

  B

  NOS Sachs & KTM Spark Plug Caps

  A   #0288-091-000 -     $6 each

 SACHS brand made of hard, black plastic

  B    #51-31-010-200  -  $10 each

 made of  plastic and metal with rubber seal

 NOS BOSCH Coil

for 100 and 125 ignitions

 #0283-109-000-   $120 each

  NOTE: only 1 in stock

A

B

  BOSCH Rubber Caps

     for coil wiring

A- #0265-151-000 -   $4 each

          for stator wires

B- #0265-150-000 -     $6 each

             for spark plug wire

           A                         B                  C

BOSCH Ignition ARMATURES

for 100 and 125 ignitions

A- #0265-139-014 -     $15 each

             stop light armature

     NOTE: has thin wire in winding - mounts on top of ignition winding

B- #0265-141-004 -     $20 each

             head light generating winding

     NOTE: has thick wire in winding

C- #0265-139-012 -     Sold out

             Ignition generating winding

     NOTE: has blue wire coming out as shown

A- Sachs

B- Sachs

C- KTM

D- KTM

MAG NUTS with Left Hand metric thread

for Sachs & KTM engines

A- #0942-072-110 -      $4 each

         left hand M10 nut for Sachs Cranks

B- #0245-022-000 -      $ .50 each

          spring washer

C- #51-30-028-100 -     $12 each

           left hand M12 nut for KTM Cranks

They do fit in the flywheel for the Motoplat mini-6's on  1980's Huskys. The opening on the Femsa flywheels is bigger so they should fit these earlier ignitions as well

D- #0137-120-000 -    $ .25 each

            Spring washer

  Flywheel puller for Honda, Kawasaki, & Husqvarna

  22mm x 1.5 pitch right hand (Male) thread

 #99-PUL-22150 -      $24 each

         fits the following models:

 HONDA - XL-XR 250/ 350/ 500/ 600/ 650    VF 500/ 700/ 750 vt/ 1000/ 1100vt

               V45/ 65   VFR 750   FT/ GB 500   NX650   TL250

 KAWASAKI - 1985-95 KLR250    1984-86 KLR600 A/B    1987-95 KLR650 A

                1990-91 KLR650 B Tengai

 HUSQVARNA - fits most 1990-present WX and WR series 2 stroke enduro models

Schier Kontakte Contact Points

         NOS replacement points (ULZ 115/1Z) (ULZ 126/2Z) for:

1950 - 1960 2-stroke motorcycles and scooters

MAICO - 1955-64  175GS/ M250B / M250S / Blizzard models

NSU - 1960-up with Bosch magneto LUX / MAX / Consul

Victoria - Bergmeister (left hand)

Zundapp - 1953-55  150 / 175 / 200 / 250

  #99-2729-Schier   -    $10 each

    A            B                      C

Reproduction Honda Contact Points

A- #99-HP-22-88801   -    $5 each

          CB350/360 Right (Honda #30203-286-004)

B- #99-HP-22-88802   -     Sold out

          CB350/360 Left (Honda #30204-286-004)

C- #99-HP-22-88803   -      $5 each

          CB450/GL1000 Right  (Honda #30203-292-003)
